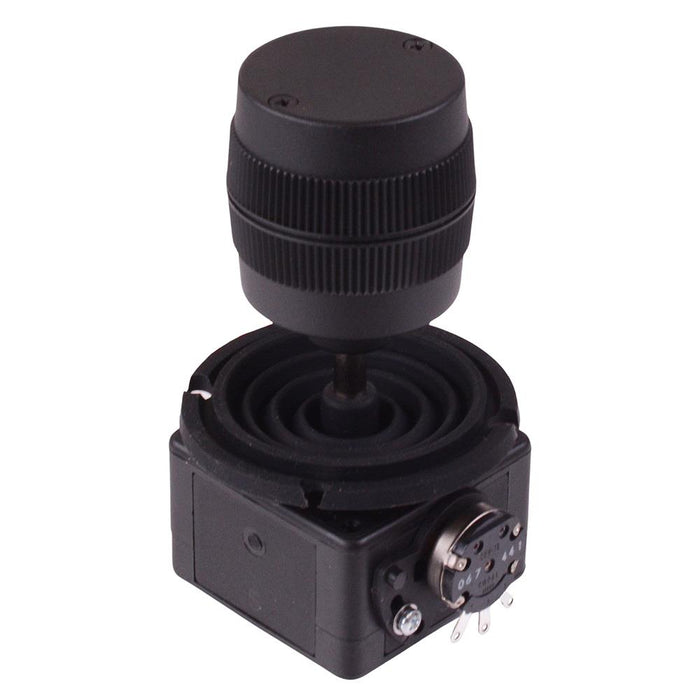

M31L081P-100 APEM 3 Axis Fingertip Potentiometer Joystick
by APEM
SKU 487355
MPN: M31L081P-100
Availability:
24 in stock
Save 6%
Original price
£175.61
Original price
£175.61
-
Original price
£175.61
Original price
£175.61
Current price
£165.95
£165.95
-
£165.95
Current price
£165.95
The M31L081P-100 is a 3-axis resistive joystick featuring a low profile design utilising potentiometric technology. The controller provides uwavering finger positioning control and ergonomically designed handle, suitable for applications requiring a compact and reliable low operating force controller.
- 3 axis
- Rubber boot mounting bezel
- Low profile mounting depth
- Spring centering
- Flying leads
- Potentiometer output: 5K 220Ω
- Panel cut-out: 39.7mm
- Handle size: 59.7 x 35.6mm (height x diameter)
Specification
| Back Order Lead Time | 120 |
| Handle | Round |
| Joystick Travel | ±28° |
| Mechanical Life | 1,000,000 Cycles |
| MOQ | 1 |
| Number of Axis | 3 |
| Operating Temperature | -25°C to +70°C |
| Technology | Potentiometer |
| Terminal Type | Solder |
