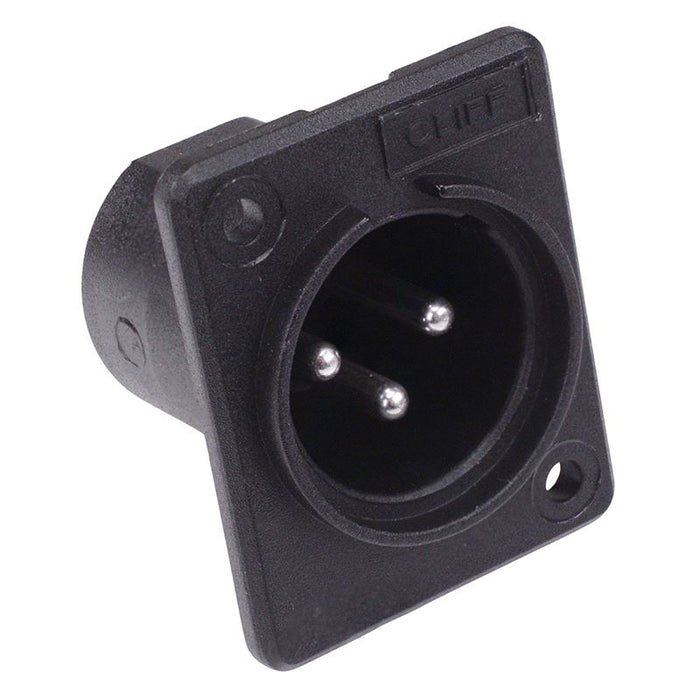

Male XLR 3 Pole Chassis Mount Plug CP30001
by CLIFF
SKU 485886
MPN: CP30001
Availability:
96 in stock
Original price
£2.02
-
Original price
£2.02
Original price
£2.02
Inc VAT
£2.02
-
£2.02
Current price
£2.02
Inc VAT
The CP30001 is a 3 pole male XLR chassis plug featuring a tough nylon construction with special low noise contacts. The connector is suitable for numerous applications including professional and consumer audio, broadcast, industrial uses.
3 pole Panel cut-out: 21.5mm Body material: nylon Contact material: nickel silver plated brass
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Current rating | 15A |
| Gender | Male |
| Housing material | Polyamide |
| Mounting type | Panel |
| Number of poles | 3 |
| Operating temperature | -30°C to +80°C |
| Panel cut out | 21.5mm |
| Termination method | Solder |
| Voltage rating | 250VAC |
