XT90PW-M Male Gold Plated Connector 45A AMASS
by AMASS
SKU 482758
MPN: XT90PW-M30.G2.Y
Availability:
436 in stock
Original price
£1.13
-
Original price
£1.13
Original price
£1.13
£1.13
£1.13
-
£1.13
Current price
£1.13

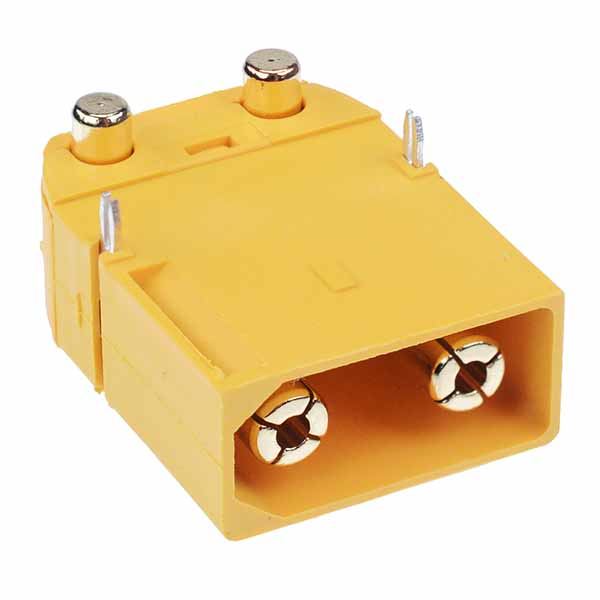

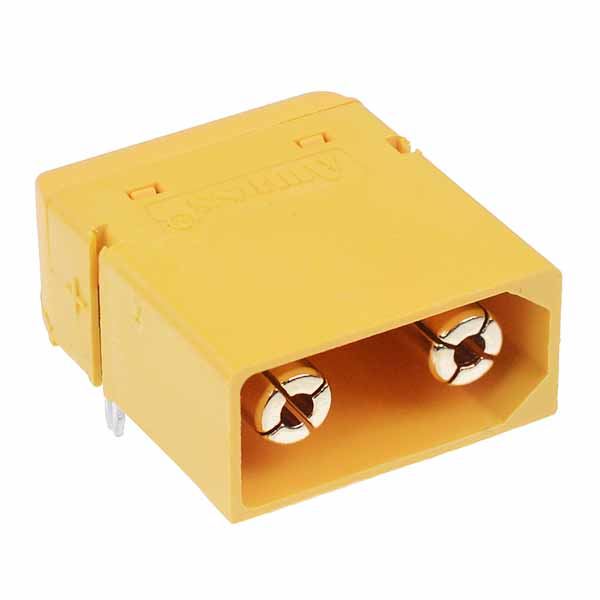

Male XT90PW connector featuring gold plated brass contacts and high temperature nylon housing. The connectors are housed in a compact package and are suitable for mounting horizontally to a board.
Manufactured by AMASS Current rating: 45A Contact material: gold plated brass Insulator material: nylon Recommended wire size: 12AWG
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow |
| Contact Material | Gold Plated Brass |
| Contact Resistance | 0.4mΩ |
| Current Rating | 45A |
| Dielectric Withstand Voltage | DC 500V |
| Gender | Male |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2 |
| Termination Method | Solder |
