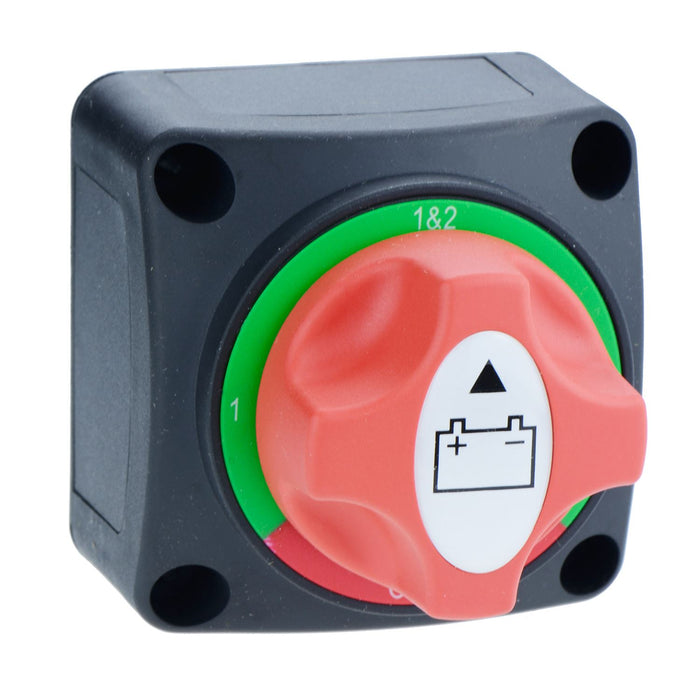

Marine Battery Isolator Cut-Off Changeover Switch 100A 12-50VDC A23-3

by SCI
SKU 124115

MPN: A23-3

347 in stock
Original price £14.16 - Original price £14.16
Original price
£14.16 Inc VAT
£14.16 - £14.16
Current price £14.16 Inc VAT
Battery cut-off switch suitable for a wide range of applications where the isolation of multiple batteries is required. The switch has 4 operations and can be used to turn ON battery 1, 2, 1+2 or isolate all batteries.

  • Copper screw terminals
  • 4 switching positions (1&2, 1, 2, OFF)
  • Dimensions: 73.5 x 69 x 69mm (Height x Width x Length
  • Continuous Rating: 100A 12-50VDC
  • Specification
    Back order lead time 120 Days
    Continuous rating 100A 12-50VDC
    Current rating 100A
    Mounting style Chassis Mount
    Number of positions 4
    Operating temperature -25°C to +80°C
    Panel cut out 60mm
    Switch operation Changeover
    Terminal type Screw
    Voltage rating 50VDC
