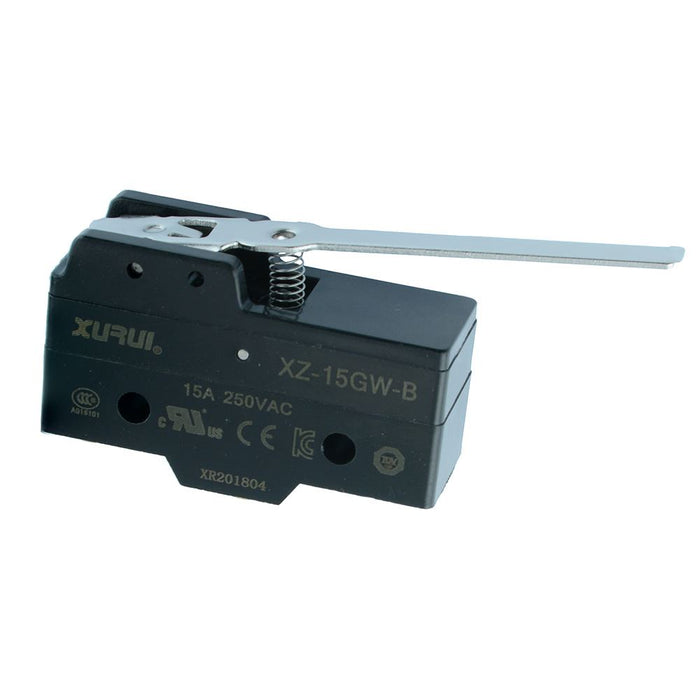

Medium Lever Z Series Limit Switch SPDT 15A 250VAC
SKU 480403
MPN: 480403
Availability:
93 in stock
Original price
£2.88
-
Original price
£2.88
Original price
£2.88
£3.26
£3.26
-
£3.26
Current price
£3.26
Z series heavy duty microswitch featuring a medium lever actuator and SPDT contacts. The switch is connected using the screw terminals and is suitable for a wide range of applications requiring a reliable microswitch.
Medium lever actuator Rating: 15A 250VAC NO / NC contacts Screw terminals 1,000,000 operation life Operating force: 80g Release force: 14g
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 80g |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP40 |
| Release Force | 14g |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
