Metal 16mm Push Button Off(On) Momentary Switch SPST
SKU 103132
MPN: 103132
Availability:
173 in stock
Original price
£3.33
-
Original price
£3.33
Original price
£3.33
£3.33
£3.33
-
£3.33
Current price
£3.33

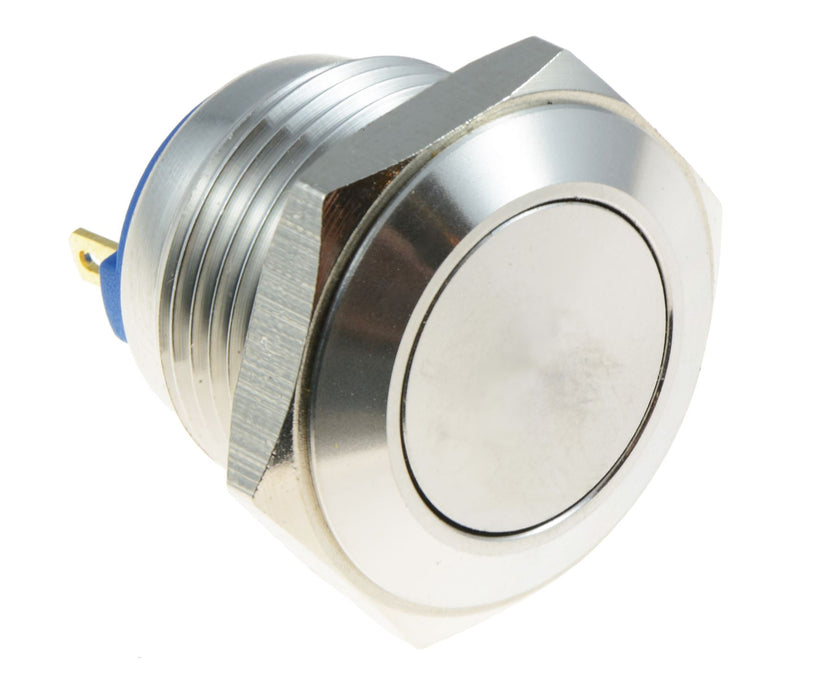

High quality vandal proof push button switch with a momentary operation. The metal switch has an attractive design which compliments quality panels and dashboards. With an IP67 rating, the switch is waterproof and suitable for a wide range of applications including automotive.
SPST contacts Off-(On) operation Momentary switch action Solder terminals Requires 16mm panel cut-out Maximum Panel Thickness: 6mm Dimensions: 22 x 17.85mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Contact Configuration | SPST |
| Contact Rating | 2A 36VDC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 36VDC |
