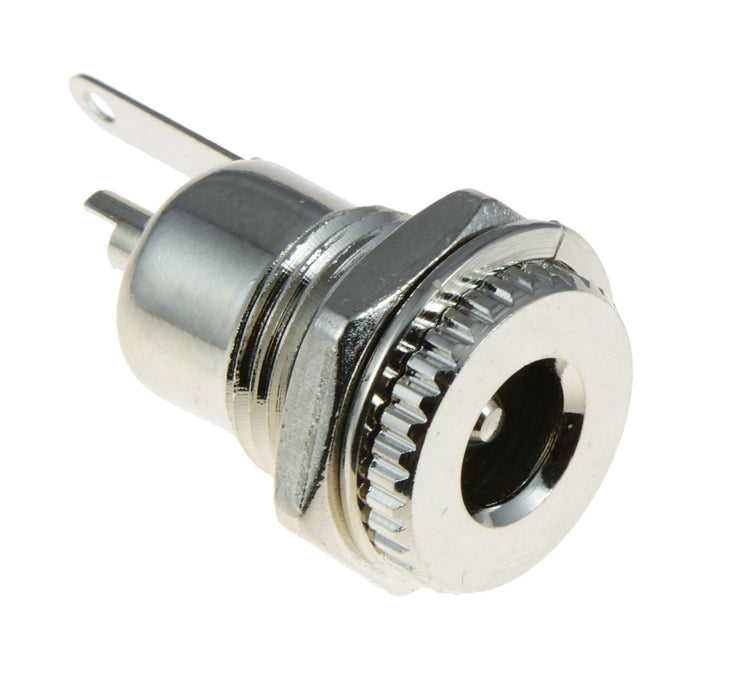

Metal 2.1mm Female Socket DC Connector

SKU 210052

MPN: 210052

Availability:
203 in stock
Original price £1.35 - Original price £1.35
Original price
£1.35 Inc VAT
£1.35 - £1.35
Current price £1.35 Inc VAT
Metal DC power sockets with a nickel plated body suitable for a wide range of applications.

  • Size: 2.1 x 5.5mm
  • Includes washer and fixing nut
  • Suitable for panel mounting
  • Panel cut-out: 11mm
  • Maximum panel thickness: 3.5mm
  • Voltage rating: 30VDC
  • Current rating: 1A
  • Specification
    Back order lead time 30 Days
    Colour Silver
    Contact material Nickel Plated
    Contact rating 1A 30VDC
    Housing material Nickel Plated Brass
    Inner diameter 2.1mm
    Mounting type Panel
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Panel cut out 11mm
    Termination method Solder
