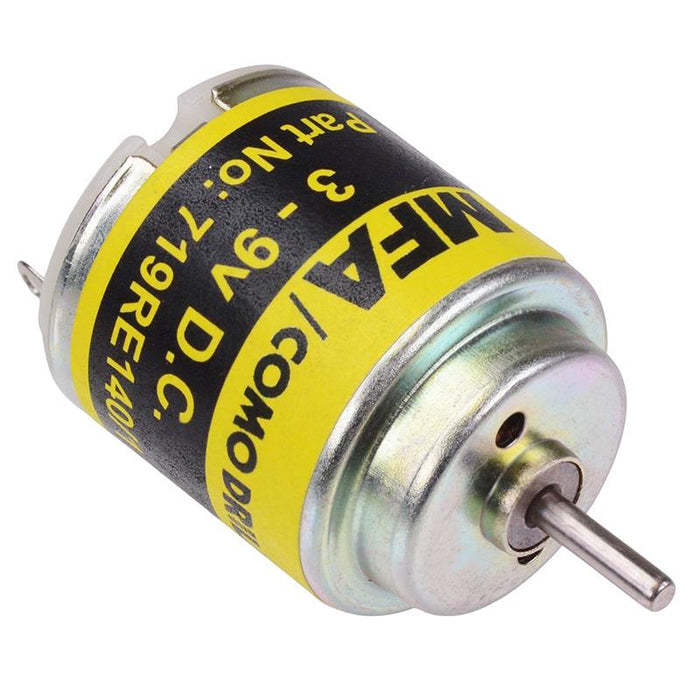

MFA 719RE-140/1 3-9V 3 Pole DC Motor 9200RPM
by MFA Como
SKU 485458
MPN: 719RE-140/1
Availability:
Out of stock
Sold out
Original price
£2.19
-
Original price
£2.19
Original price
£2.19
£2.19
-
£2.19
Current price
£2.19
The 719RE-140/1 is a 3 pole DC motor with a nominal 6V voltage and 9200RPM no load speed. The motor features robust gearing and quality housing making it suitable for light industrial and model applications.
3 poles Operating range: 3-9V Nominal voltage: 6V No load speed: 9200RPM No load current: 0.066A Body dimensions: 21 x 21 (length x diameter) Output shaft diameter: 2.0mm Weight: 20g
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 21mm |
| Length | 21.0mm |
| No Load Current | 0.066A |
| No Load Speed | 9200rpm |
| Operating Voltage | 3-9V |
| Rated Load Current | 0.219A |
| Rated Load Speed | 7071rpm |
| Rated Voltage | 6V |
| Shaft Diameter | 2.0mm |
| Shaft Length | 8.3mm |
