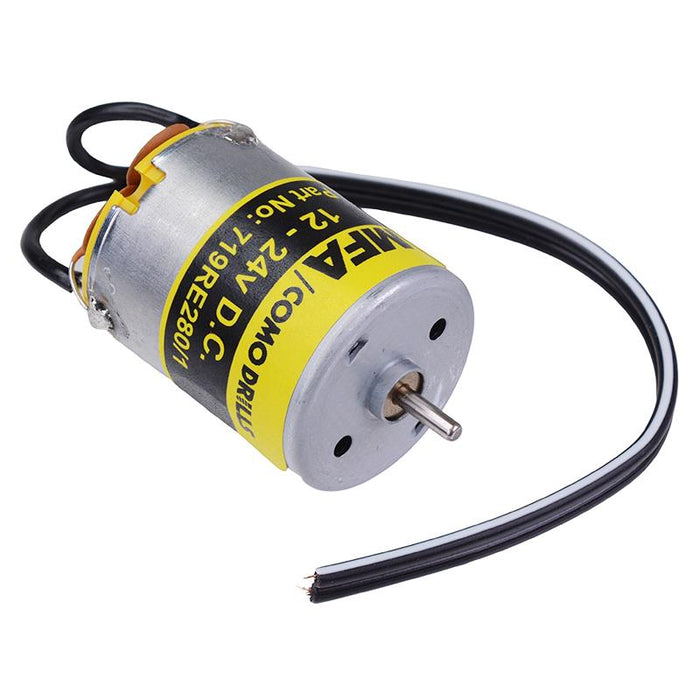

MFA 719RE-280/1 12-24V 3 Pole DC Motor 8224RPM

MFA 719RE-280/1 12-24V 3 Pole DC Motor 8224RPM

by MFA Como
SKU 485461

MPN: 719RE-280/1

Availability:
42 in stock
£4.15 - £4.15
£4.15
£4.15
£4.15 - £4.15
£4.15
The 719RE-280/1 is a 3 pole DC motor with a nominal 12V voltage and 8224RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial and model applications.

  • 3 poles
  • Operating range: 12-24V
  • Nominal voltage: 12V
  • No load speed: 8224RPM
  • No load current: 0.046A
  • Body dimensions: 30.5 x 23.8 (length x diameter)
  • Output shaft diameter: 2.0mm
  • Weight: 44g
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 7
    Diameter 23.8mm
    Length 30.5mm
    MOQ 1
    No Load Current 0.046A
    No Load Speed 8224rpm
    Operating Voltage 12-24V
    Rated Load Current 0.194A
    Rated Load Speed 6636rpm
    Rated Voltage 12V
    Shaft Diameter 2.0mm
    Shaft Length 7.4mm
