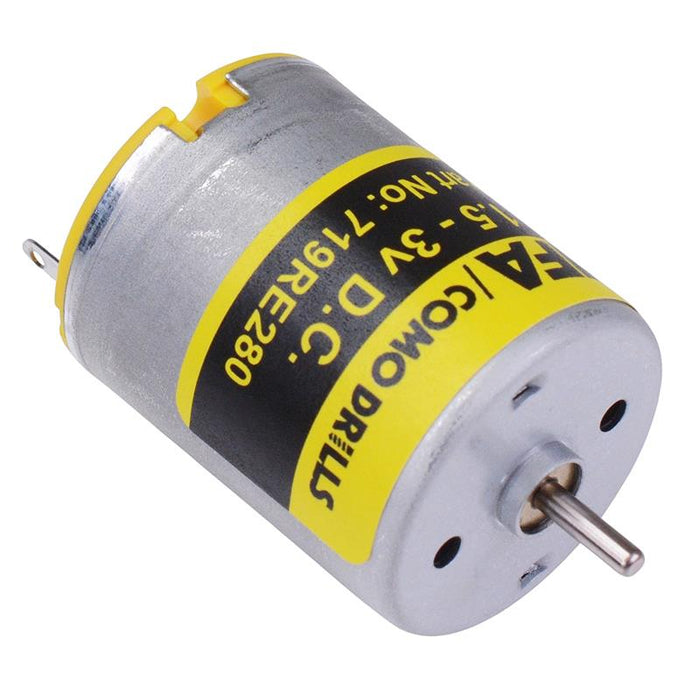

MFA 719RE-280 1.5-3V 3 Pole DC Motor 8800RPM
by MFA Como
SKU 485460
MPN: 719RE-280
Availability:
Only 2 left!
Original price
£2.57
-
Original price
£2.57
Original price
£2.57
Inc VAT
£2.57
-
£2.57
Current price
£2.57
Inc VAT
The 719RE-280 is a 3 pole DC motor with a nominal 3V voltage and 8800RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial and model applications.
3 poles Operating range: 1.5-3V Nominal voltage: 3V No load speed: 8800RPM No load current: 0.24A Body dimensions: 30.5 x 23.8 (length x diameter) Output shaft diameter: 2.0mm Weight: 44g
Specification
| Back order lead time | 5 Days |
| Diameter | 23.8mm |
| Length | 30.5mm |
| No load current | 0.24A |
| No load speed | 8800rpm |
| Operating voltage | 1.5-3V |
| Rated load current | 1.06A |
| Rated load speed | 7200rpm |
| Rated voltage | 3V |
| Shaft diameter | 2.0mm |
| Shaft length | 7.4mm |
