MFA 719RE-280/5 3-6V 3 Pole DC Motor 9256RPM

SKU 485462

MPN: 719RE-280/5

Availability:
11 in stock
Original price £4.48 - Original price £4.48
Original price
£4.48 Inc VAT
£4.48 - £4.48
Current price £4.48 Inc VAT

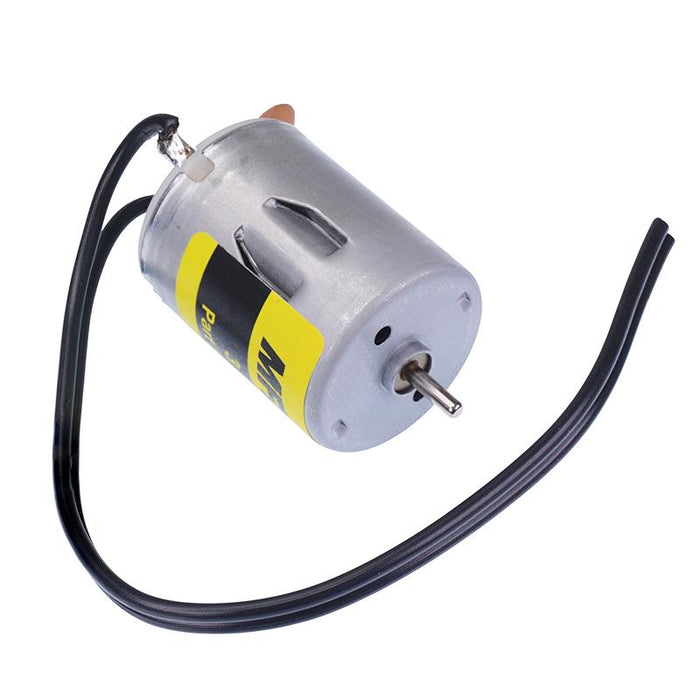

The 719RE-280/5 is a 3 pole DC motor with a nominal 6V voltage and 9256RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial and model applications.

  • 3 poles
  • Operating range: 3-6V
  • Nominal voltage: 6V
  • No load speed: 9256RPM
  • No load current: 0.108A
  • Body dimensions: 30.5 x 23.8 (length x diameter)
  • Output shaft diameter: 2.0mm
  • Weight: 44g
  • Specification
    Back Order Lead Time 5 Days
    Diameter 23.8mm
    Length 30.5mm
    No Load Current 0.108A
    No Load Speed 9256rpm
    Operating Voltage 3-6V
    Rated Load Current 0.534A
    Rated Load Speed 7703rpm
    Rated Voltage 6V
    Shaft Diameter 2.0mm
    Shaft Length 7.4mm
