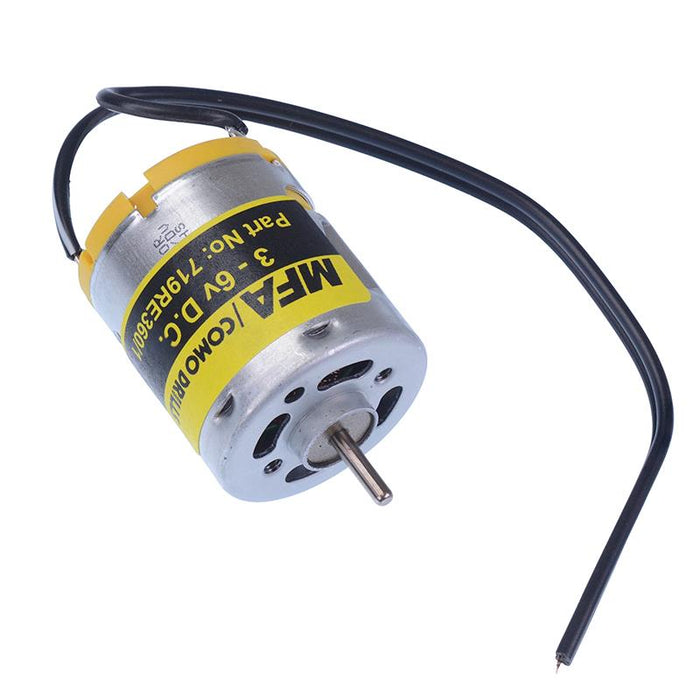

MFA 719RE-360/1 3-6V 3 Pole DC Motor 10450RPM

SKU 485451

MPN: 719RE-360/1

Availability:
Out of stock
Sold out
Original price £5.29 - Original price £5.29
Original price
£5.29 Inc VAT
£5.29 - £5.29
Current price £5.29 Inc VAT
The 719RE-360/1 is a 3 pole DC motor with a nominal 6V voltage and 10450RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial and model applications.

  • 3 poles
  • Operating range: 3-6V
  • Nominal voltage: 6V
  • No load speed: 10450RPM
  • No load current: 0.31A
  • Body dimensions: 32.5 x 27.6 (length x diameter)
  • Output shaft diameter: 2.3mm
  • Weight: 51g
  • Specification
    Back Order Lead Time 5 Days
    Diameter 27.6mm
    Length 32.5mm
    No Load Current 0.31A
    No Load Speed 10,450rpm
    Operating Voltage 3-6V
    Rated Load Current 1.55A
    Rated Load Speed 8706rpm
    Rated Voltage 6V
    Shaft Diameter 2.3mm
    Shaft Length 8.2mm
