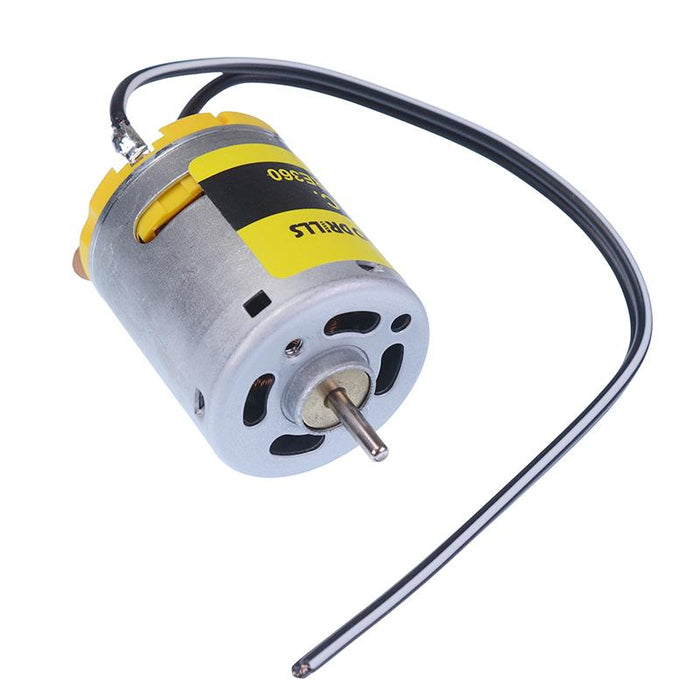

MFA 719RE-360 6-15V 3 Pole DC Motor 10420RPM
by MFA Como
SKU 485450
MPN: 719RE-360
Availability:
Out of stock
Sold out
Original price
£5.41
-
Original price
£5.41
Original price
£5.41
£5.41
£5.41
-
£5.41
Current price
£5.41
The 719RE-360 is a 3 pole DC motor with a nominal 12V voltage and 10420RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial and model applications.
3 poles Operating range: 6-15V Nominal voltage: 12V No load speed: 10420RPM No load current: 0.143A Body dimensions: 32.5 x 27.6 (length x diameter) Output shaft diameter: 2.3mm Weight: 51g
Specification
| Back Order Lead Time | 7 |
| Diameter | 27.6mm |
| Length | 32.5mm |
| MOQ | 1 |
| No Load Current | 0.143A |
| No Load Speed | 10,420rpm |
| Operating Voltage | 6-15V |
| Rated Load Current | 0.143A |
| Rated Load Speed | 8768rpm |
| Rated Voltage | 12V |
| Shaft Diameter | 2.3mm |
| Shaft Length | 8.2mm |
