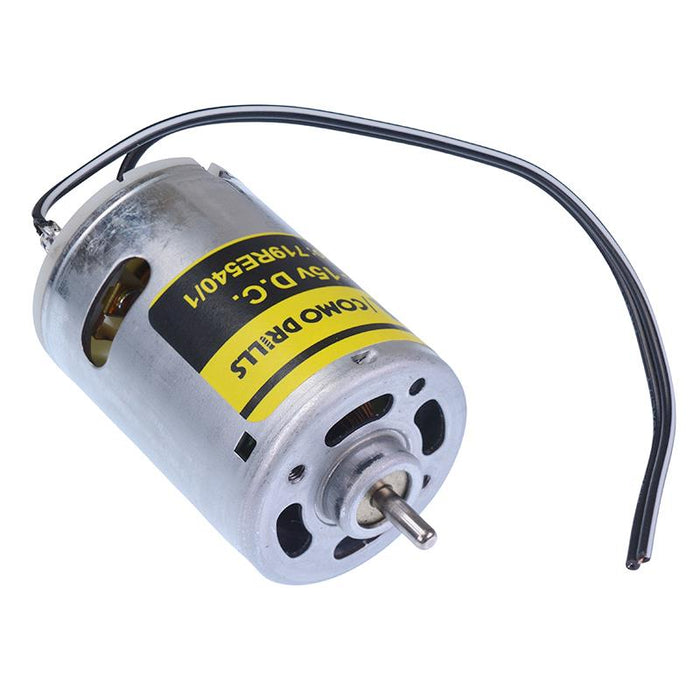

MFA 719RE-540/1 4.5-15V 3 Pole DC Motor 14500RPM
by MFA Como
SKU 485453
MPN: 719RE-540/1
Availability:
9 in stock
Original price
£9.29
-
Original price
£9.29
Original price
£9.29
Inc VAT
£9.29
-
£9.29
Current price
£9.29
Inc VAT
The 719RE-540/1 is a 3 pole DC motor with a nominal 12V voltage and 14500RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial, model and robotic applications.
3 poles Operating range: 4.5-15V Nominal voltage: 12V No load speed: 14500RPM No load current: 0.7A Body dimensions: 50 x 35.8 (length x diameter) Output shaft diameter: 3.2mm Weight: 146g
Specification
| Back order lead time | 5 Days |
| Diameter | 35.8mm |
| Length | 50.0mm |
| No load current | 0.7A |
| No load speed | 14,500rpm |
| Operating voltage | 4.5-15V |
| Rated load current | 2.81A |
| Rated load speed | 12,048rpm |
| Rated voltage | 12V |
| Shaft diameter | 3.2mm |
| Shaft length | 9.0mm |
