MFA 917D/A Motor and Gearbox Assembled

SKU 485446

MPN: 917D/A

Availability:
Out of stock
Sold out
Original price £9.29 - Original price £9.29
Original price
£9.29 Inc VAT
£9.29 - £9.29
Current price £9.29 Inc VAT

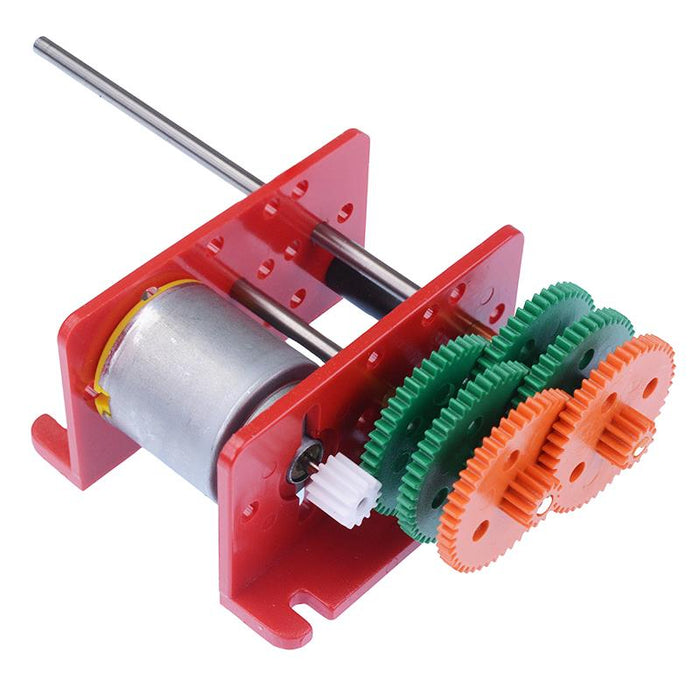

The 917D/A is a fully assembled motor and gearbox featuring various gear ratios and DC motor with an operating voltage between 1.5 to 3V. The motor can be powered using a battery or transformer making it suitable for various uses including powering models and robots.

  • Fully assembled gear ratios
  • Gear ratios: 4:1, 16:1, 64:1, 256:1, 1024:1, 4096:1
  • Motor input voltage: 1.5-3VDC
  • No load speed: 14,800rpm
  • No load current: 0.3A
  • 3mm output shaft diameter
  • Specification
    Back order lead time 5 Days
    No load current 0.3A
    No load speed 14,800rpm
    Operating voltage 1.5-3V
    Rated load current 1.05A
    Rated load speed 11,500rpm
    Rated voltage 3V
    Shaft diameter 3.0mm
