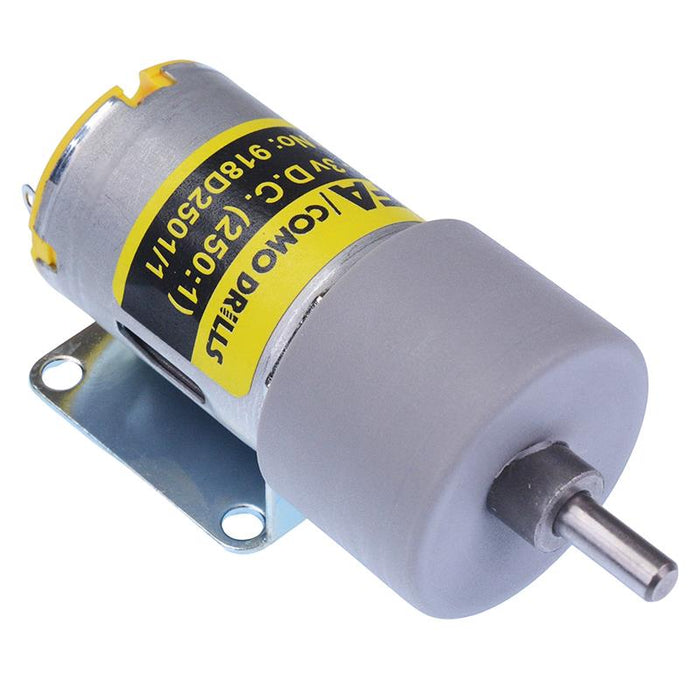

MFA 918D2501/1 250:1 Gearbox and Motor 1.5-3V

SKU 485465

MPN: 918D2501/1

12 in stock
Original price £13.36 - Original price £13.36
Original price
£13.36 Inc VAT
£13.36 - £13.36
Current price £13.36 Inc VAT
The 918D2501/1 is a 1.5-3V 3 pole DC motor with a 250:1 single ratio gearbox. The gearbox is constructed from brass and steel and protected by a plastic cover to prevent the ingress of dust and dirt whilst also making it safer to touch. The motors are suitable for use with robots, models and light industrial applications.

  • 250:1 gear ratio
  • Operating range: 1.5-3V
  • Nominal voltage: 3V
  • No load current: 0.24A
  • No load speed: 8800RPM
  • Geared speed: 35RPM
  • 4mm output shaft
  • Dimensions: 67.5 x 24mm (length x diameter)
  • Weight 76g
  • Specification
    Back order lead time 5 Days
    Diameter 24mm
    Length 67.5mm
    No load current 0.24A
    No load speed 35rpm
    Operating voltage 1.5-3V
    Rated load current 1.06A
    Rated voltage 3V
    Shaft diameter 4.0mm
    Shaft length 10.0mm
