MFA 920D/A High Torque Motor and Gearbox Assembled
by MFA Como
SKU 485447
MPN: 920D/A
Availability:
Only 2 left!
Original price
£12.13
-
Original price
£12.13
Original price
£12.13
£12.13
£12.13
-
£12.13
Current price
£12.13

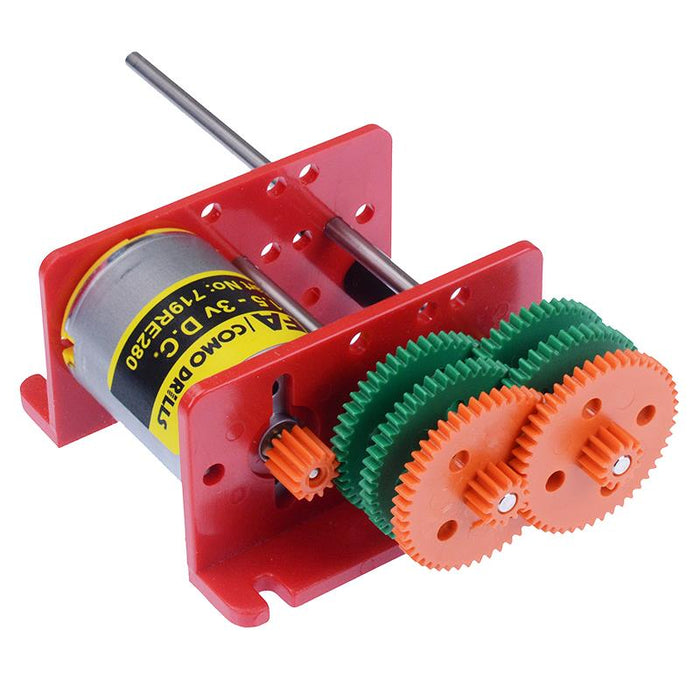

The 920D/A is a fully assembled motor and gearbox featuring various gear ratios and DC motor with an operating voltage between 1.5 to 3V. The motor can be powered using a battery or transformer making it suitable for various uses including powering models and robots.
Fully assembled gear ratios Gear ratios: 4:1, 16:1, 64:1, 256:1, 1024:1, 4096:1 Motor input voltage: 1.5-3VDC No load speed: 9200rpm No load current: 0.155A 3mm output shaft diameter
Specification
| Back Order Lead Time | 7 |
| MOQ | 1 |
| No Load Current | 0.155A |
| No Load Speed | 9200rpm |
| Operating Voltage | 1.5-3V |
| Rated Load Current | 0.85A |
| Rated Load Speed | 7200rpm |
| Rated Voltage | 3V |
| Shaft Diameter | 3.0mm |
