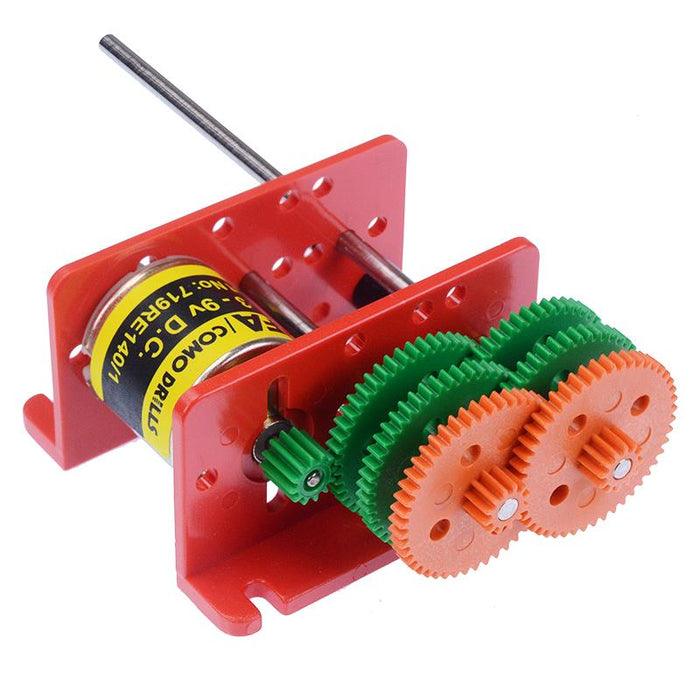

MFA 932D/A Motor and Gearbox Assembled
by MFA Como
SKU 485449
MPN: 932D/A
Availability:
Only 3 left!
Original price
£10.35
-
Original price
£10.35
Original price
£10.35
£10.35
£10.35
-
£10.35
Current price
£10.35
The 932D/A is a fully assembled motor and gearbox featuring various gear ratios and DC motor with an operating voltage between 6 to 9V. The motor can be powered using a battery or transformer making it suitable for various uses including powering models and robots.
Fully assembled gear ratios Gear ratios: 4:1, 16:1, 64:1, 256:1, 1024:1, 4096:1 Motor input voltage: 6-9VDC No load speed: 9200rpm No load current: 0.066A 3mm output shaft diameter
Specification
| Back Order Lead Time | 5 Days |
| No Load Current | 0.066A |
| No Load Speed | 9200rpm |
| Operating Voltage | 6-9V |
| Rated Load Current | 0.219A |
| Rated Load Speed | 7071rpm |
| Rated Voltage | 6V |
| Shaft Diameter | 3.0mm |
