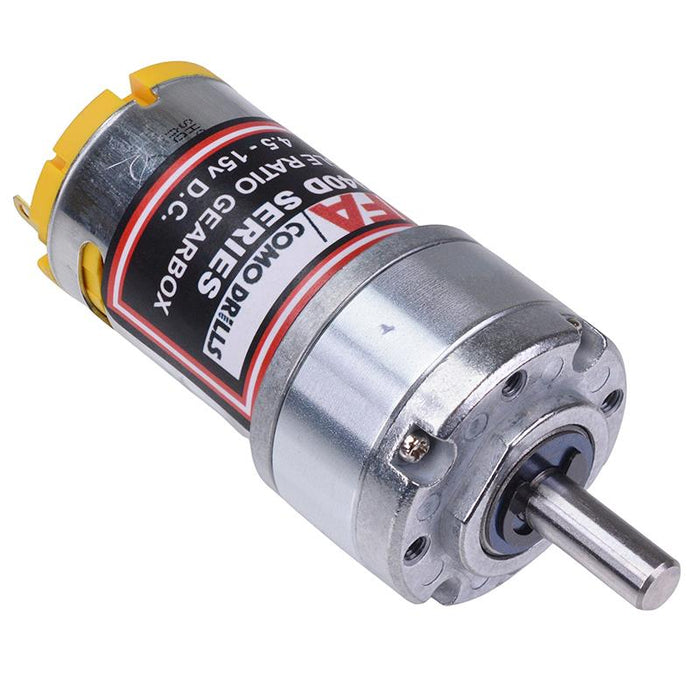

MFA 940D5161 Epicyclic 516:1 Gearbox and Motor 4.5-15V

SKU 485473

MPN: 940D5161

12 in stock
Original price £41.04 - Original price £41.04
Original price
£41.04 Inc VAT
£41.04 - £41.04
Current price £41.04 Inc VAT
The 940D5161 is a 4.5-15V 5 pole DC motor with a 516:1 single ratio gearbox. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The motors are suitable for use with robots, models and heavy industrial applications.

  • 516:1 gear ratio
  • Operating range: 4.5-15V
  • Nominal voltage: 12V
  • No load current: 0.18A
  • No load speed: 11,646RPM
  • Geared speed: 23RPM
  • 5.5mm output shaft
  • Dimensions: 100.3 x 32mm (length x diameter)
  • Weight 239g
  • Specification
    Back order lead time 5 Days
    Diameter 32mm
    Length 81.1mm
    No load current 0.18A
    No load speed 23rpm
    Operating voltage 4.5-15V
    Rated load current 0.99A
    Rated voltage 12V
    Shaft diameter 5.5mm
    Shaft length 17.0mm
