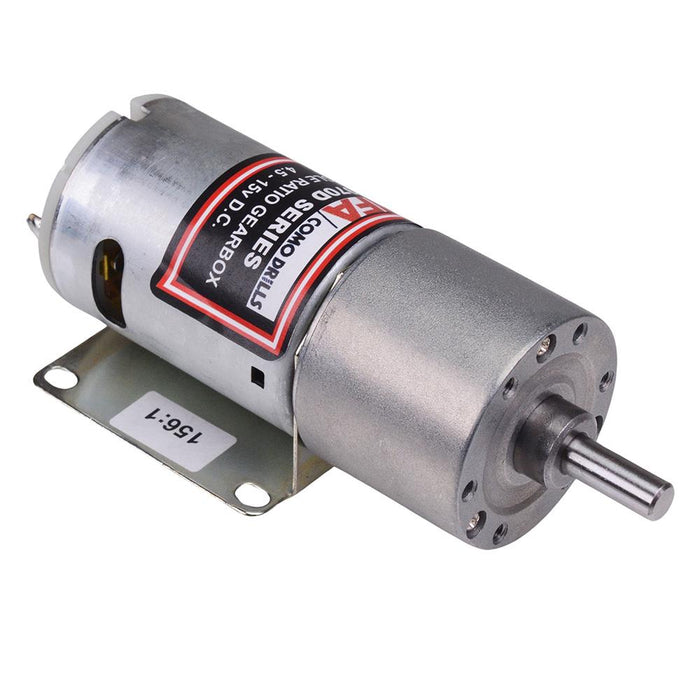

MFA 970D1561 Heavy Duty 156:1 Gearbox and Motor 4.5-15V

The 970D1561 is designed for heavy-duty industrial and model applications. This robust unit boasts a powerful high quality, three pole motor with sintered bronze bearings. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The unit is mounted on a 1mm thick plated steel bracket.

156:1 gear ratio

Operating range: 4.5-15V

Nominal voltage: 12V

No load current: 0.7A

No load speed: 14,000RPM

Geared speed: 93RPM

5.5mm output shaft

Dimensions: 113 x 35.5mm (length x diameter)

Weight: 293g
