Microphone 7mm Height PCB

SKU 483463

MPN: 483463

Availability:
4794 in stock
Original price £0.17 - Original price £0.17
Original price
£0.17 Inc VAT
£0.17 - £0.17
Current price £0.17 Inc VAT

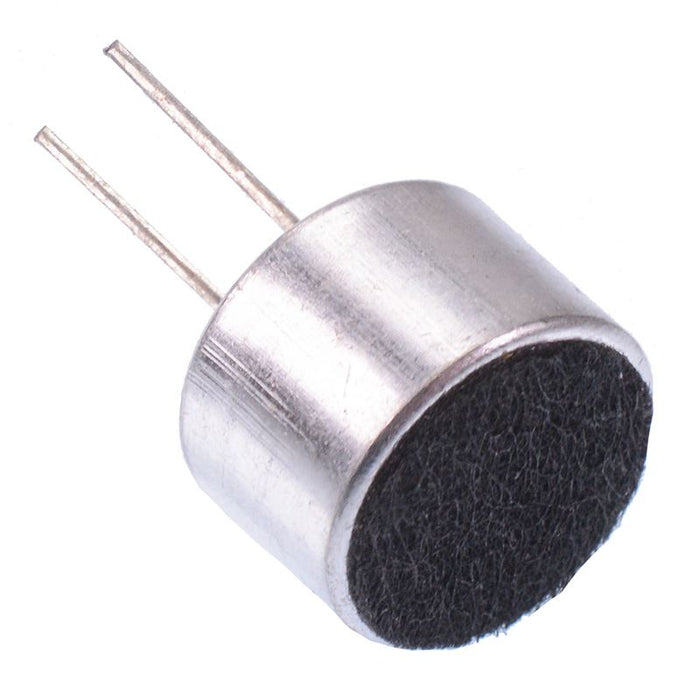

Electret condenser microphone featuring a 1V to 10V input voltage, suitable for PCB applications.

  • Omni-directional
  • Sensitivity: 58dB
  • Current drain: 0.5mA Max
  • Dimensions: 6.7 x 9.7mm (Height x Diameter)
  • Impedance: 2.2k Ohm
  • Terminal pitch: 2.5mm
  • S/N ratio: 40dB minimum
  • Specification
    Back order lead time 45 Days
    Diameter 9.7mm
    Height 6.7mm
    Impedance 2.2kΩ
    Input voltage 1 to 10V
    Maximum supply current 0.5mA
    Moq 5
    Operating temperature -20°C to +70°C
    Pitch 2.5mm
    Sensitivity 58dB
    Signal to noise ratio 40dB
