Midi / Strip Fuse Holder
SKU 482293
MPN: 482293
Availability:
1147 in stock
Original price
£1.84
-
Original price
£1.84
Original price
£1.84
Inc VAT
£1.84
-
£1.84
Current price
£1.84
Inc VAT

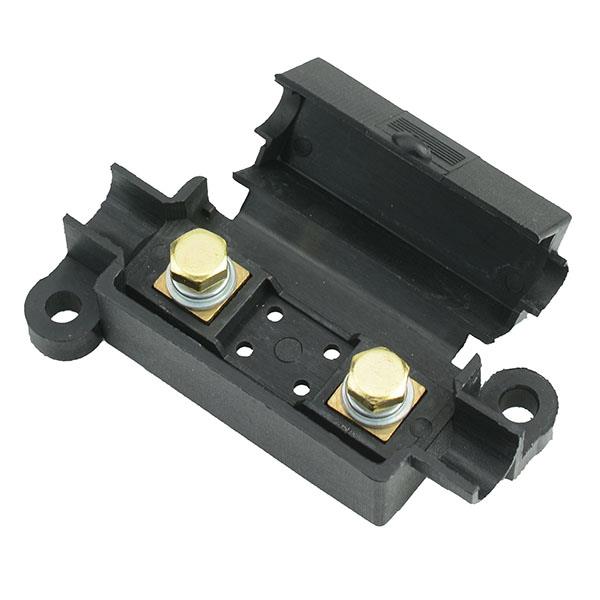

Inline fuse holder suitable for use with midi or strip fuses. The cable connections are made using the 2 x 5mm studs and allow a maximum cable size up to 16mm2.
Colour: black In-line cable entry Fixing hole diameter: 4.7mm Cable size: 16mm2 max Overall dimensions: 70 x 37 x 23mm (L x W x H)
Specification
| Back order lead time | 30 Days |
| Body material | PA66 |
| Compatible wire size | 16mm² Max |
| Current rating | 125A |
| Fuse size | Midi / Strip |
| Mounting style | In-Line |
| Number of fuses | 1 |
| Operating temperature | -40°C to +125°C |
| Protection level | IP40 |
| Voltage rating | 32VDC |
| Wire size | 16mm² Max |
