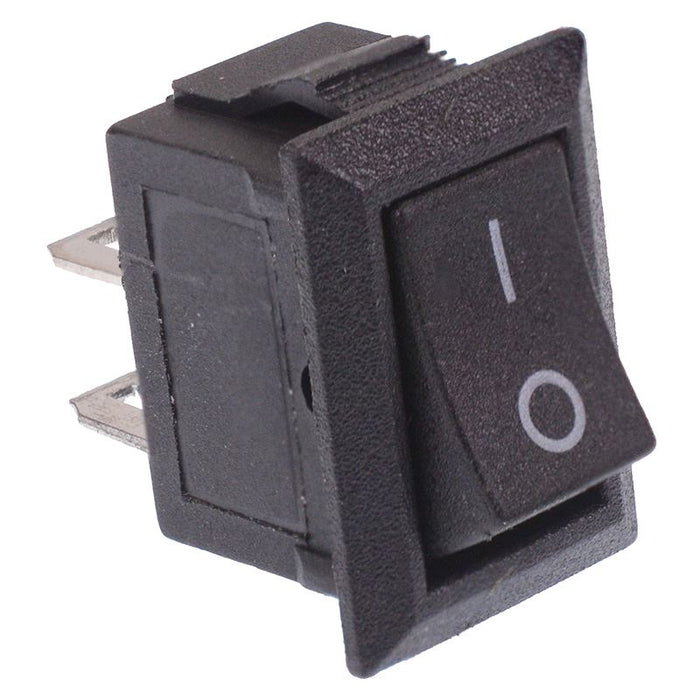

Mini Black On-Off Rectangle Rocker Switch SPST
SKU 130002
MPN: 130002
Availability:
630 in stock
Original price
£0.49
-
Original price
£0.49
Original price
£0.49
£0.49
-
£0.49
Current price
£0.49
Miniature rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications where space is limited.
On-off action SPST contacts Solder terminals Panel cut-out: 13.2 x 9mm Dimensions: 20 x 15 x 10.5mm (Height x Length x Width) Maximum current: 3A Maximum voltage: 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 13.2 x 9mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
