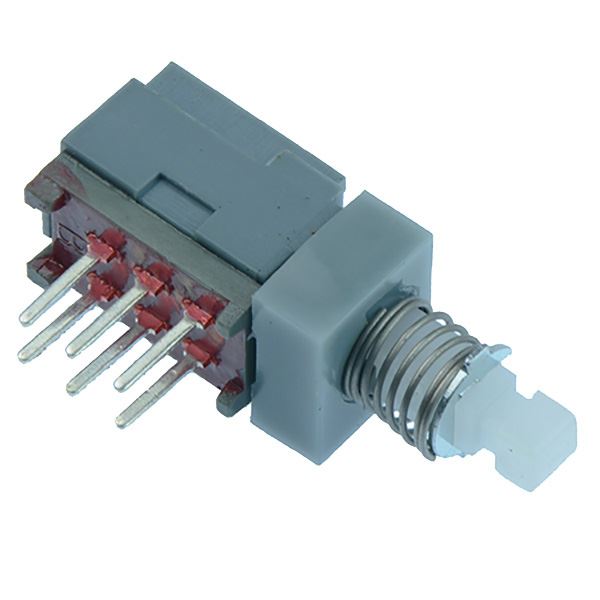

Mini Push Button Latching PCB Switch DPDT 30V
by Canal
SKU 550416
MPN: PS909L-22
Availability:
Out of stock
Sold out
Original price
£0.70
-
Original price
£0.70
Original price
£0.70
£0.70
-
£0.70
Current price
£0.70
2 pole latching push switch suitable for PCB mounting.
DPDT contacts Rating: 0.1A 30VDC 25.1 x 9.1 x 7.8mm (L x H x W) 2.5mm terminal pitch 230gf operating force
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | DPDT |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 10000 Cycles Min |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 230gf |
| Operating Temperature | -20°C to +70°C |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
