Miniature Dry Contact Reed Switch 1A - GR560-20-25
by Comus
SKU 552489
MPN: GR560-20-25
Back Order Availability: 180
Availability:
22 in stock, ready to be shipped
Original price
£1.02
-
Original price
£1.02
Original price
£1.02
Inc VAT
£1.02
-
£1.02
Current price
£1.02
Inc VAT

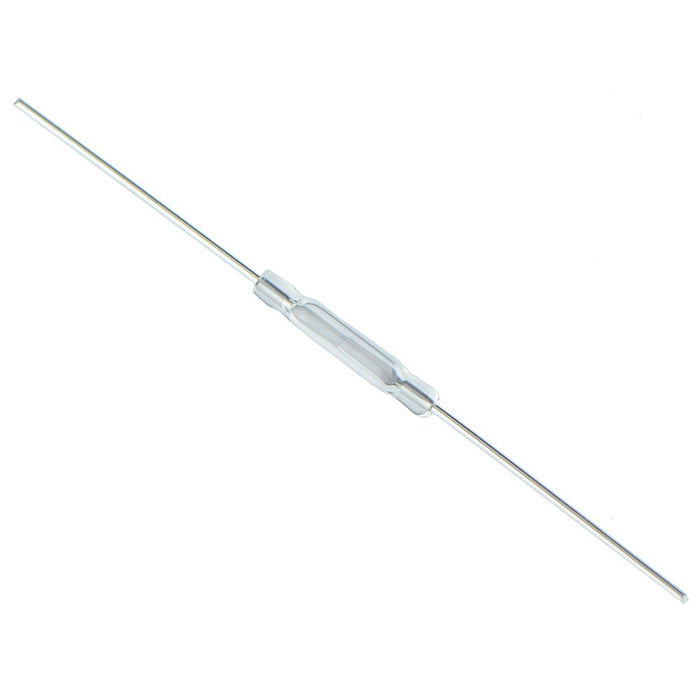

GR560-20-25 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.
Normally open contacts Maximum switching voltage: 125VAC, 100VDC Maximum switching current: 1A Maximum switching power: 10VA
Specification
| Back order lead time | 180 |
| Carry current | 1.5A |
| Contact configuration | SPST-NO |
| Length | 14.2mm |
| Material | Rhodium |
| Maximum switching capacity | 10VA |
| Maximum switching current | 1A |
| Maximum switching voltage | 100VDC, 125VAC |
