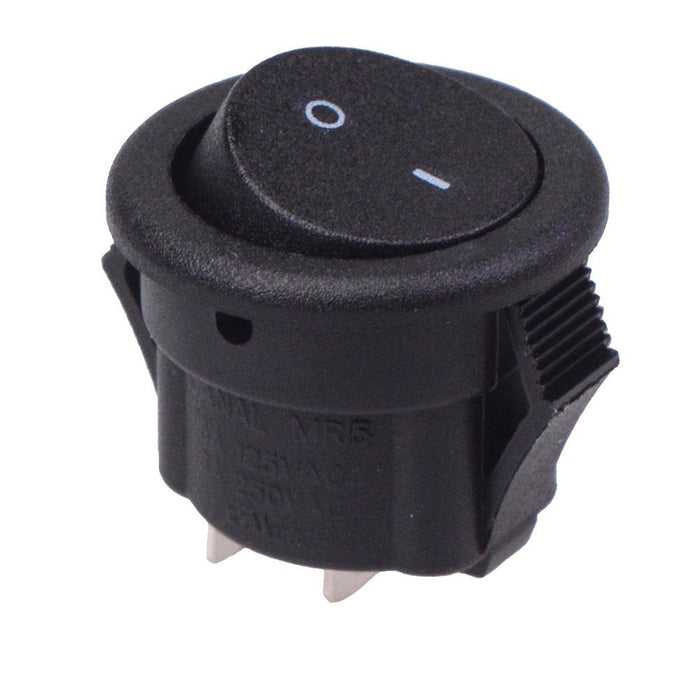

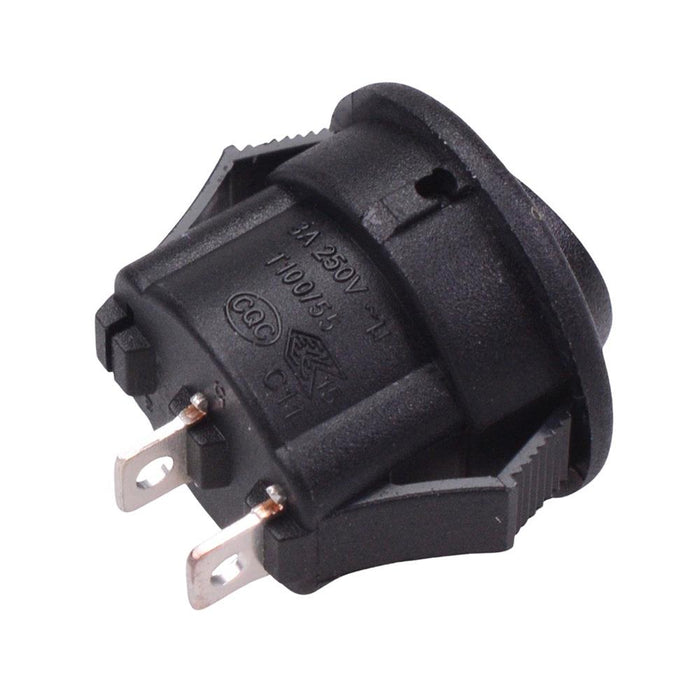

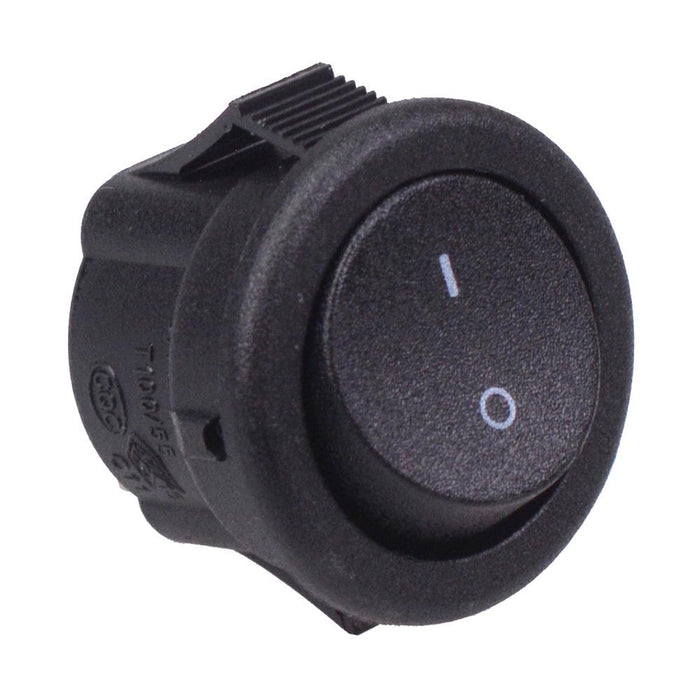

Miniature On-Off 15mm Round Rocker Switch SPST 3A 250VAC
by Canal
SKU 491850
MPN: MR5-111R5W-NBBA-0N2C
Availability:
993 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.78
£0.78
-
£0.78
Current price
£0.78
MR5 miniature circular rocker switch featuring On-Off function and SPST contacts. The switch features a compact package and small behind panel depth, suitable for use in tight spaces. The switch features 6A current rating and is suitable for a wide range of switching applications.
Function: On-Off Contacts: SPST Panel cut-out: 15mm Terminals: solder Rating: 3A 250VAC, 6A 125VAC Dimensions: 18.9 x 16.5mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 6A 125VAC, 3A 250VAC |
| Current Rating | 6A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 15mm |
| Panel Thickness | 1-2mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
