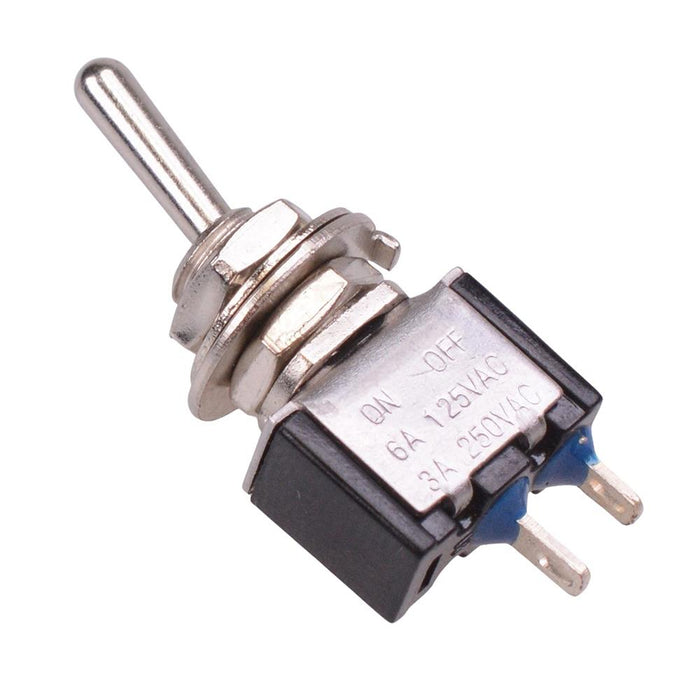

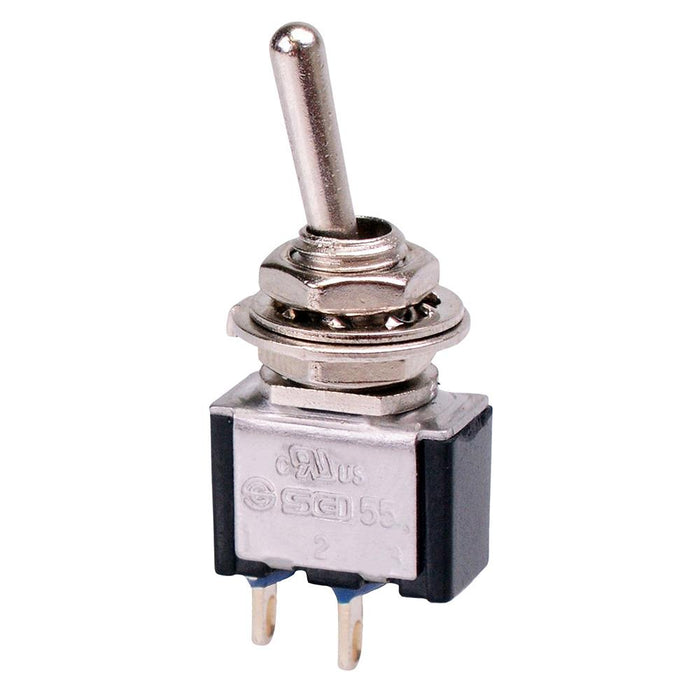

TA101A1 On-Off Miniature Toggle Switch SPST 6A
by SCI
SKU 112022
MPN: TA101A1
Availability:
690 in stock
Original price
£1.29
-
Original price
£1.29
Original price
£1.29
£1.29
£1.29
-
£1.29
Current price
£1.29
The TA101A1 is a miniature size toggle switch with On-Off function and SPST contacts. The switch requires a 6.2mm panel cut-out and is rated up to 6A, suitable for low power switching applications.
On-Off action SPST contacts 6.2mm panel cut-out M6*0.75 thread Solder contacts Rating: 3A 250VAC, 6A 125VAC Epoxy sealed for dust and moisture resistance
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 6mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
