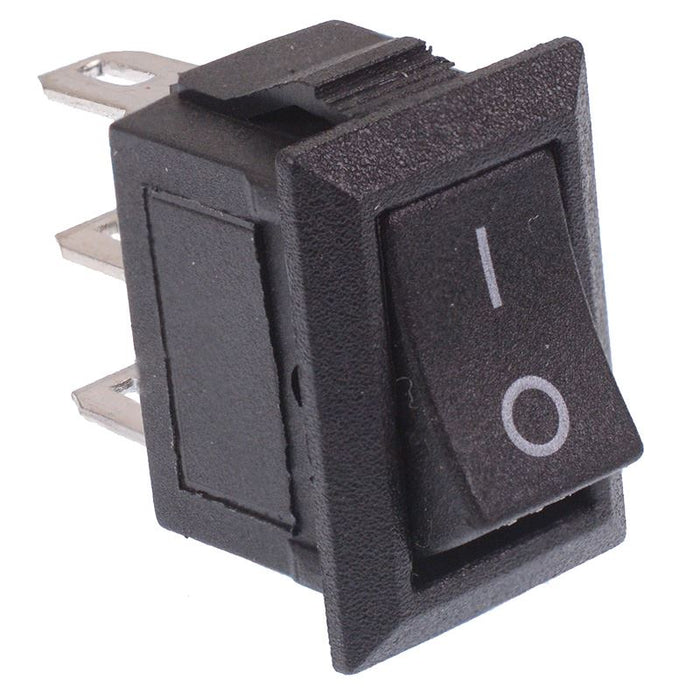

Miniature On-On Rectangle Rocker Switch SPDT
SKU 482806
MPN: 482806
Availability:
881 in stock
Original price
£0.48
-
Original price
£0.48
Original price
£0.48
£0.48
£0.48
-
£0.48
Current price
£0.48
Mini rectangular rocker switch featuring an On-On switching action and SPDT contacts. The switch features solder terminals and is suitable for low power applications where space is limited.
On-On action SPDT contacts Solder contacts Rating: 3A 250VAC, 6A 125VAC Panel cut-out: 12 x 8mm Dimensions: 19.2 x 15 x 10.5mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC, 6A 125VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 5 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12 x 8mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
