Miniature On-On Slide Switch PCB DPDT
SKU 124004
MPN: 124004
Back Order Availability: 30
Availability:
3262 in stock, ready to be shipped
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
Inc VAT
£0.22
-
£0.22
Current price
£0.22
Inc VAT

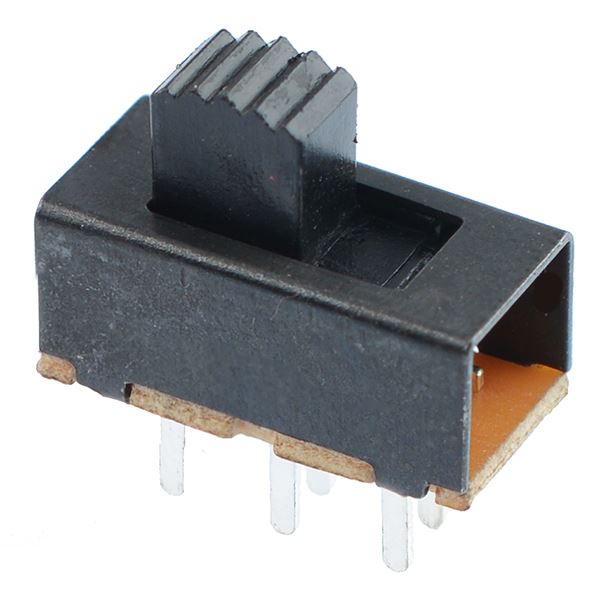

Miniature slide switch with DPDT contacts and PCB terminals suitable for a wide range of applications.
DPDT contacts On-On action 7mm actuator height Dimensions: 24 x 19 x 7.5mm (Length x Height x Width)
Specification
| Actuation | Latching |
| Back order lead time | 30 |
| Contact configuration | DPDT |
| Contact rating | 0.5A 50VDC |
| Current rating | 0.5A |
| Electrical life | 10,000 Cycles |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Switch operation | On-On |
| Terminal type | PCB |
| Voltage rating | 50VDC |
