Miniature SPST-NO Reed Switch 50mA 24VDC
SKU 482569
MPN: 482569
Availability:
121 in stock
Original price
£0.69
-
Original price
£0.69
Original price
£0.69
£0.69
-
£0.69
Current price
£0.69

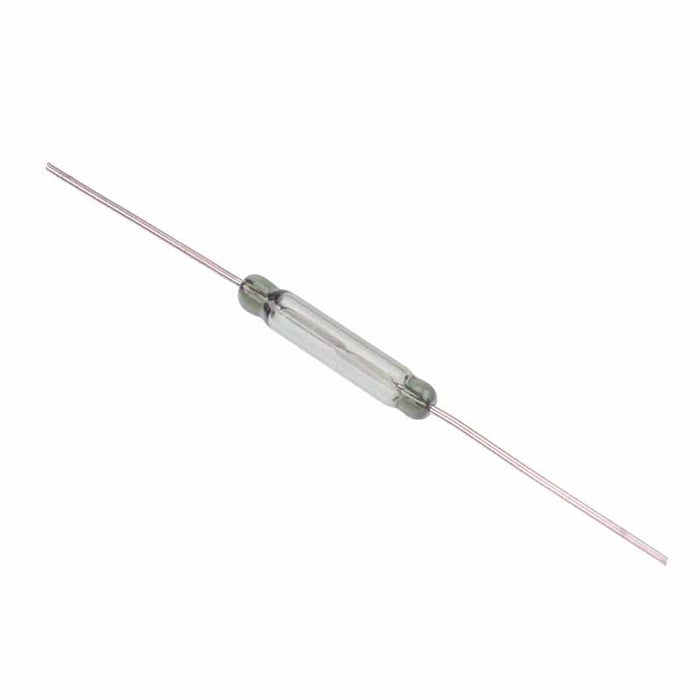

Miniature reed switch featuring NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.
Contacts: SPNO
Dimensions: 2.5 x 16mm (diameter x length)
Maximum switching voltage: 24VDC
Maximum switching current: 50mA
Pull-In value: 10-25AT
Specification
| Back Order Lead Time | 120 Days |
| Bounce Time | 0.4ms |
| Carry Current | 0.1A |
| Contact Configuration | SPST-NO |
| Diameter | 2.5mm |
| Drop Out Sensitivity | 5AT Min |
| Length | 16mm |
| Material | Rhodium |
| Maximum Switching Current | 0.05A |
| Maximum Switching Voltage | 24VDC |
| Operating Temperature | -10°C to +40°C |
| Pull In Sensitivity | 10-25AT |
| Release Time | 1ms |
