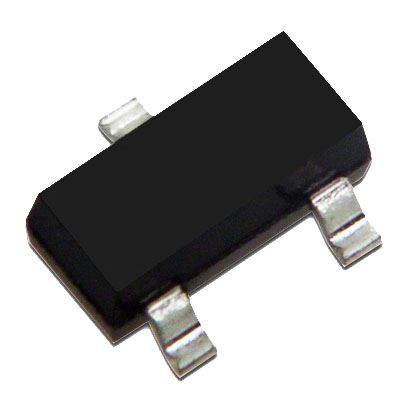

MMBT2222A 40V NPN Small Signal Transistor SOT23
by Diodes Zetex
SKU 551615
MPN: MMBT2222A
Availability:
124 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
£0.18
-
£0.18
Current price
£0.18
The MMBT2222A Transistor is a 40V NPN small signal transistor supplied in SOT23 packaging. Ideal for low power amplification and switching. For further technical specifications please refer to the attached datasheet.
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 75V |
| Collector Current | 600mA |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage | 40V |
| DC Current Gain | 100 |
| Maximum Operating Temperature | 150°C |
| MOQ | 5 |
| Mounting Type | Surface Mount |
| Package | SOT23 |
| Power Dissipation | 300mW |
| Transistion Frequency | 300MHz |
| Type | NPN |
