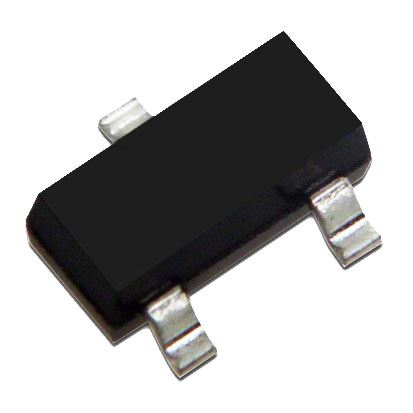

MMBT4124 25V NPN Small Signal Transistor SOT23

SKU 551619

MPN: MMBT4124

Availability:
195 in stock
Original price £0.23 - Original price £0.23
Original price
£0.23 Inc VAT
£0.23 - £0.23
Current price £0.23 Inc VAT

The MMBT4124 transitor is a 25V NPN small signal transistor supplied in SOT23 packaging. Ideal for medium power amplification and switching. For further technical specifications please refer to the attached datasheet.

  • BVCEO >25V
  • IC =200mA High Collector Current
  • Totally Lead Free and Fully RoHS Compliant
  • Ideal for medium power amplification and switching
  • 25V 200mA SOT23
  • Specification
    Back order lead time 5 Days
    Collector base voltage 30V
    Collector current 200mA
    Collector emitter saturation voltage 300mV
    Collector emitter voltage 25V
    Dc current gain 120
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Surface Mount
    Package SOT23
    Power dissipation 300mW
    Transistion frequency 300MHz
    Type NPN
