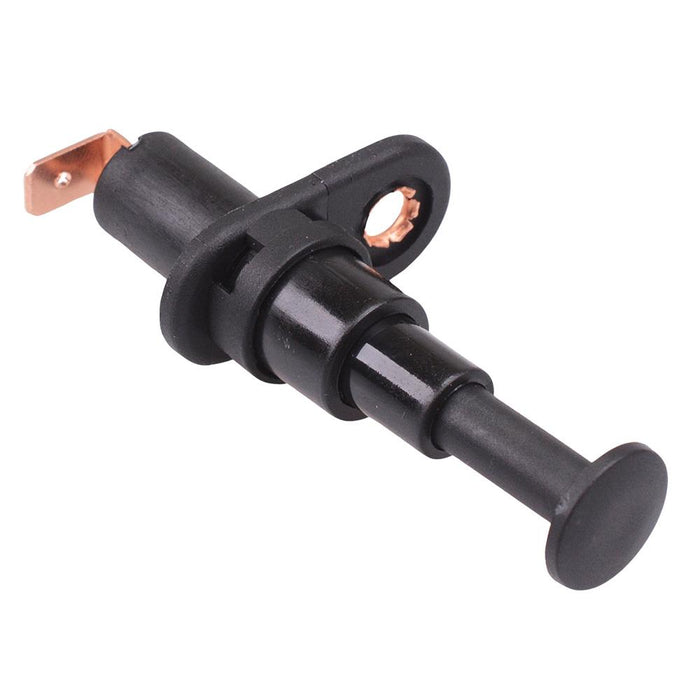

Momentary Automotive Plunger Switch 20A 12V
SKU 489305
MPN: ASW-19
Availability:
74 in stock
Original price
£1.18
-
Original price
£1.18
Original price
£1.18
£1.18
£1.18
-
£1.18
Current price
£1.18
Telescopic plunger push button switch featuring a momentary action and suitable for use with doors, bonnets and boots in automotive applications.

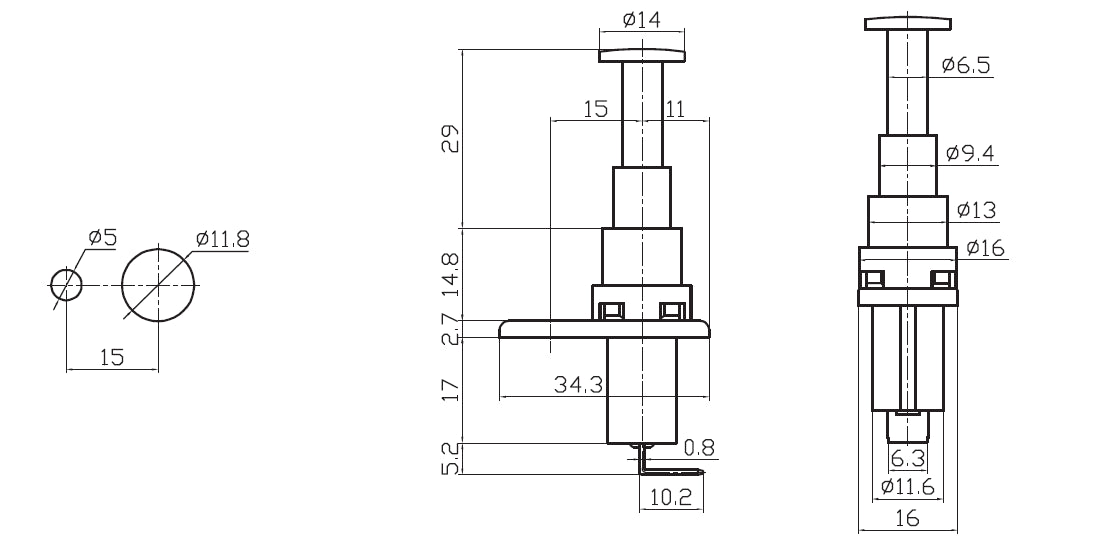

Rating: 20A 12VDC Action: On-(Off) 6.3mm quick connect terminal Dimensions: 68.7 x 34.3 x 16mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 11.8mm |
| Switch Operation | On-(Off) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
