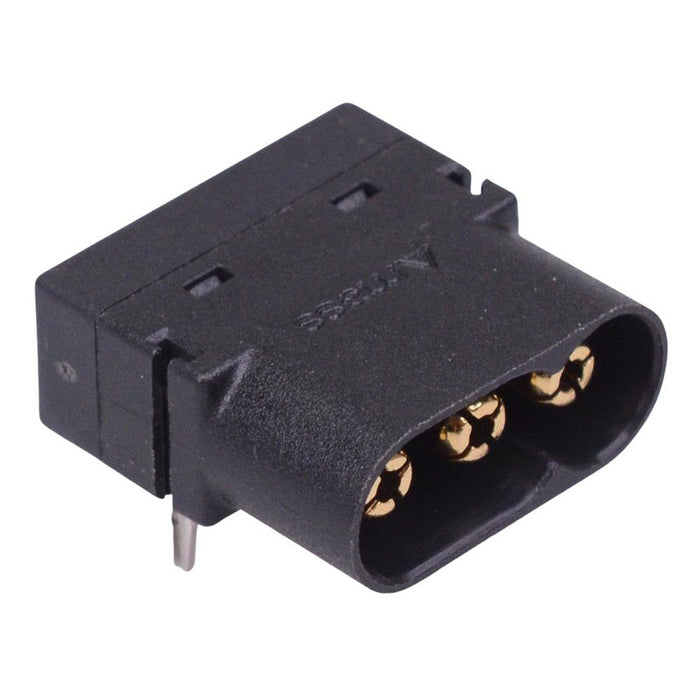

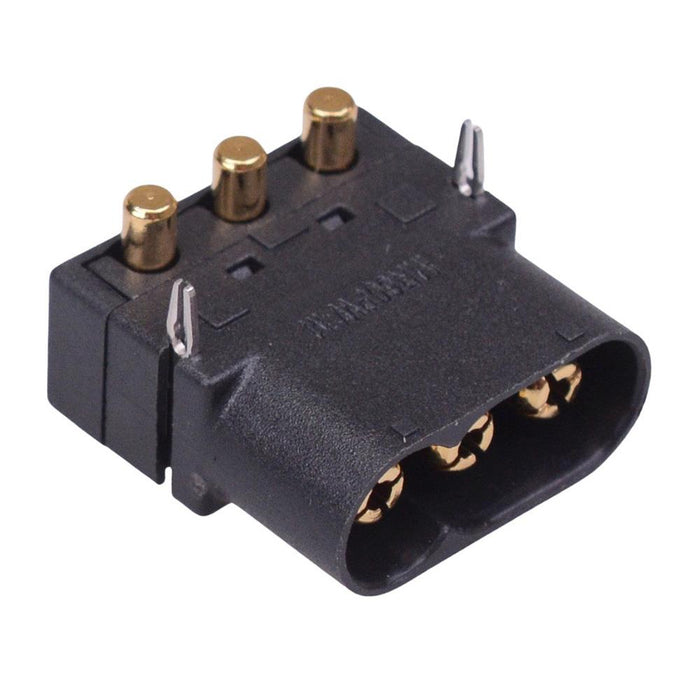

MR60PW Male 3-Pin Gold Plated PCB Socket 35A AMASS
by AMASS
SKU 490410
MPN: MR60PW-M.G.B
Availability:
500 in stock
Original price
£1.13
-
Original price
£1.13
Original price
£1.13
£1.13
£1.13
-
£1.13
Current price
£1.13
The MR60PW-M is a male 3 pin power connector featuring a high temperature resistant nylon housing and silver plated contacts providing excellent conductivity. The connector is designed for PCB mounting and suitable for a wide range of power and battery connectivity applications.
3 pins Contact material: gold plated brass Housing material: nylon Current rating: 35A Voltage rating: 600VDC Dimensions: 19.5 x 19.2 x 11.2mm (length x width x height)
Specification
| Back Order Lead Time | 45 |
| Contact Material | Gold Plated Brass |
| Current Rating | 35A |
| Dielectric Withstand Voltage | IP40 |
| Gender | Male |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 3 |
| Operating Temperature | -20°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 600VDC |
