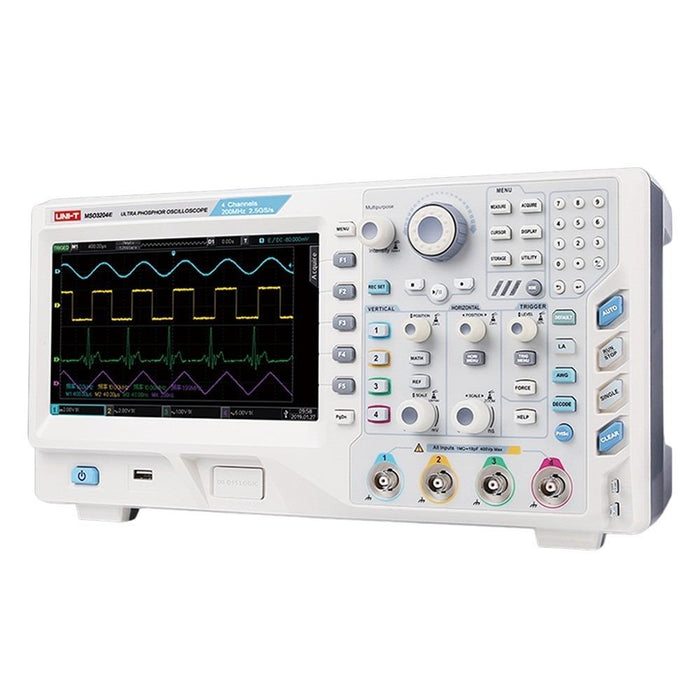

MSO3154E 4 Analog 16 Digital Channel Oscilloscope 150MHz Uni-T

by Uni-T
SKU 488976


Out of stock
Sold out
Original price £1,475.55 - Original price £1,475.55
Original price
£1,475.55 Inc VAT
£1,475.55 - £1,475.55
Current price £1,475.55 Inc VAT
The MSO3154E is the new mainstream digital phosphor oscilloscope to meet the customers needs and applications with its innovative technology. The series is designed for the most extensive testing and measurement applications market with its industry leading specifications, powerful trigger functions and broad analysis capabilities. The MSO3154E has 16 bits of mixed signal logic channels with included UT-M15 logic probe kit. With 150MHz bandwidth and 4 channels, this model also features up to 2.5G Sa/s sample rate and deep memory depth as well as waveform capture rates.

  • Bandwidth: 150MHz
  • Real time sample rate: 2.5GSa/s
  • Waveform capture rate: 200,000 wfms/s
  • 4 analog channels, 16 digital channels
  • Maximum memory depth: 70Mpts
  • 8 inch screen
  • Built-in dual-channel 50MHz signal generator
  • Independent time base and multiple trigger functions
  • Fast numeric keyboard and unique 4-window display
  • Longer storage depth
  • Specification
    Back order lead time 10 Days
    Bandwidth 150MHz
    Channels 4 Analogue 16 Digital
    Digitalanalogue Digital
    Display 8 Inch TFT LCD
    Memory depth 70Mpts
    Rise time <2.4ns
    Sampling rate 2.5GSa/s
    Vertical range 500uV/div to 20V/div
    Waveform capture rate 200,000 wfms/s
