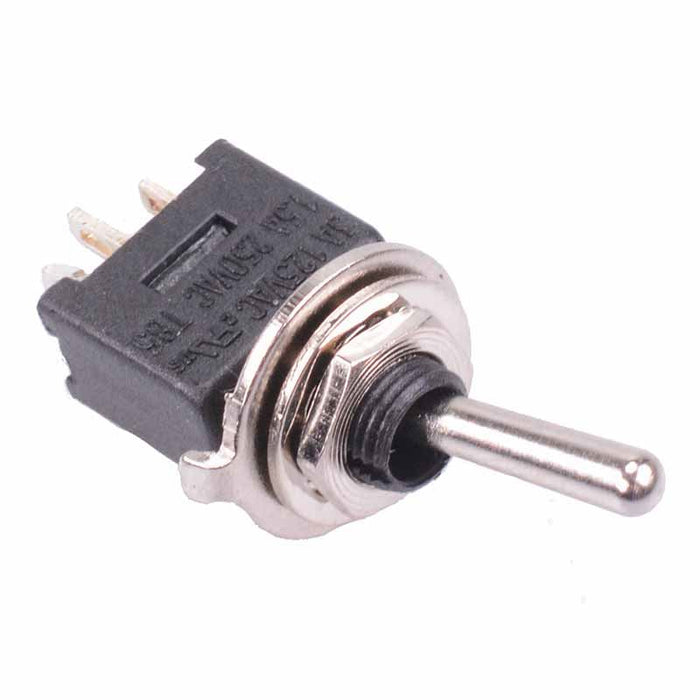

MTE102A1 On-On Miniature Toggle Switch SPDT 3A

by SCI
SKU 482611

MPN: MTE102A1

Availability:
839 in stock
Original price £1.15 - Original price £1.15
Original price
£1.15 Inc VAT
£1.15 - £1.15
Current price £1.15 Inc VAT
Sub miniature size toggle switches with SPDT contacts and On-On operation, suitable for a wide range of applications where a small but reliable switch is required.

  • On-On action
  • SPDT contacts
  • 5.2mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Rating: 3A 125VAC, 1.5A 250VAC
  • 2mm maximum panel thickness
  • SCI MTE102A1
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 1.5A 250VAC
    Current rating 1.5A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 5mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
