NDA-12V APEM 12-Way Right Angle DIP Switch SPST
by APEM
SKU 487451
MPN: NDA-12-V
Availability:
504 in stock
Original price
£1.11
-
Original price
£1.11
Original price
£1.11
£1.11
£1.11
-
£1.11
Current price
£1.11

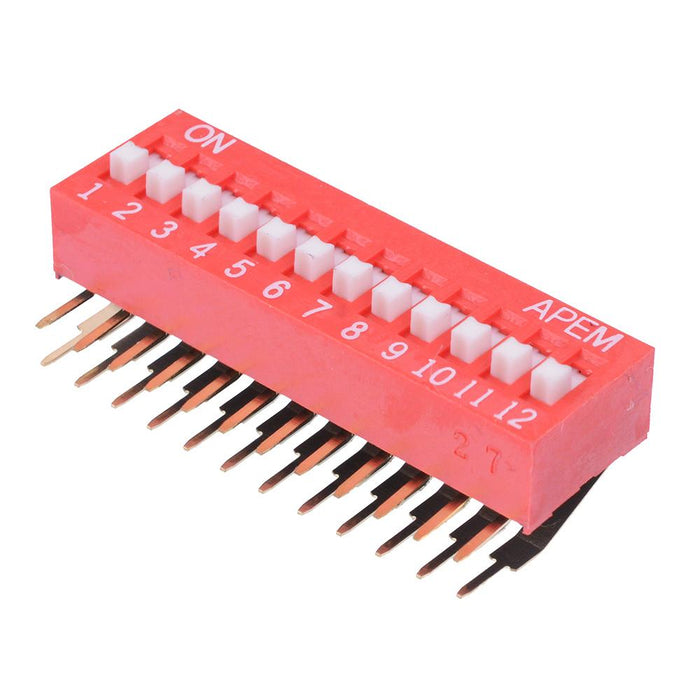

The NDA12V is a 12 way right angle DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
12 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 100mA 50VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Material | PBT |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 12 |
| Operating Force | 1000gf Max |
| Operating Temperature | -40°C to 85°C |
| Pitch | 2.54mm |
| Product Series | NDA |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
