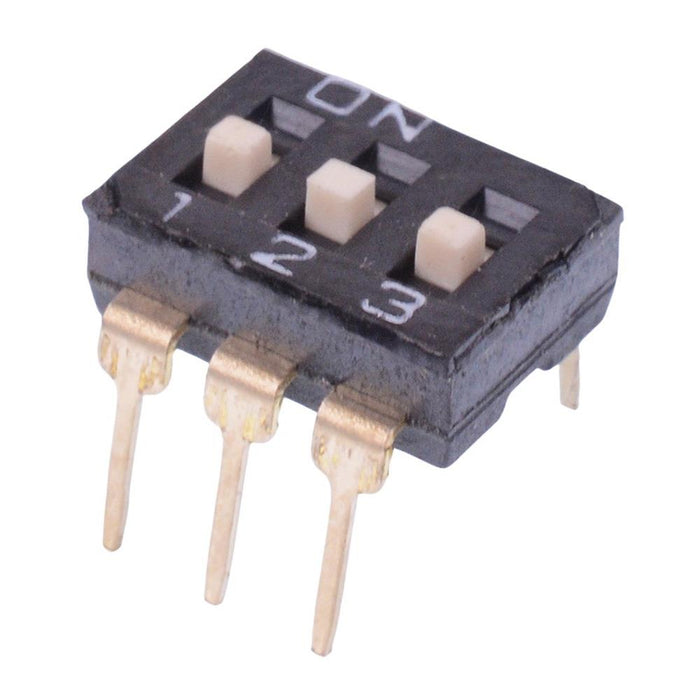

NDI-03SV APEM 3-Way 2.54mm Low Profile PCB Through Hole DIP Switch SPST

by APEM
SKU 487932

MPN: NDI03SV

Availability:
339 in stock
Original price £0.46 - Original price £0.46
Original price
£0.46 Inc VAT
£0.46 - £0.46
Current price £0.46 Inc VAT
The NDI-03SV is a 3 way through hole DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.

  • Raised actuator
  • 3 ways
  • Switch rating: 25mA 24VDC
  • Contact rating: 100mA 50VDC
  • Gold plated brass terminals
  • 2.54mm pitch
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact material Gold Plated Brass
    Contact rating 100mA 50VDC
    Current rating 25mA
    Electrical life 2,000 Cycles
    Material UL94-V0
    Mounting style Through Hole
    Number of positions 2
    Number of ways 3
    Operating temperature -20°C to +85°C
    Pitch 2.54mm
    Product series NDI
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
