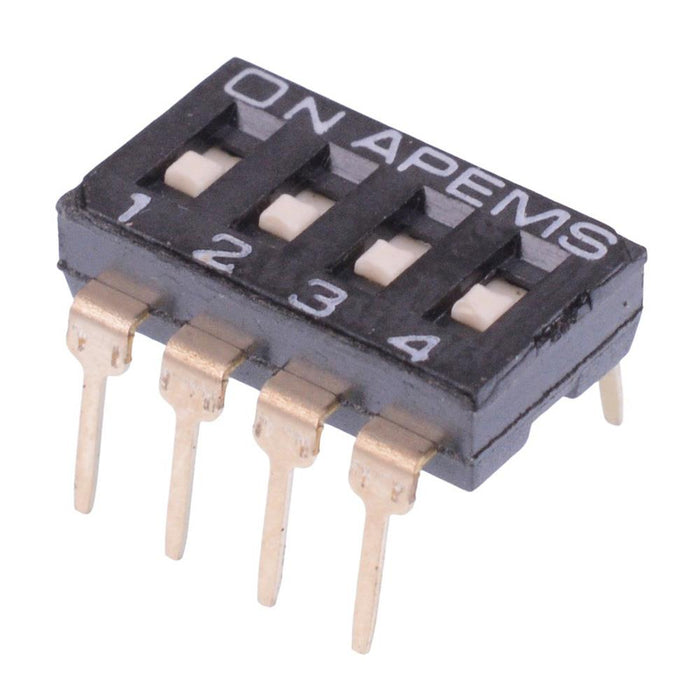

NDIR-04S 4-Way 2.54mm Low Profile PCB Through Hole DIP Switch SPST

by APEM
SKU 487570

MPN: NDIR-04S

Availability:
1428 in stock, ready to be shipped
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT
The NDIR-04S is a 4 way through hole DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.

  • Recessed actuator
  • 4 ways
  • Switch rating: 25mA 24VDC
  • Contact rating: 100mA 50VDC
  • Gold plated brass terminals
  • 2.54mm pitch
  • Specification
    Actuation Latching
    Contact configuration SPST
    Contact material Gold Plated Brass
    Contact rating 100mA 50VDC
    Current rating 25mA
    Electrical life 2,000 Cycles
    Material UL94-V0
    Mounting style Through Hole
    Number of positions 2
    Number of ways 4
    Operating temperature -20°C to +85°C
    Pitch 2.54mm
    Product series NDI
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
