NDIR-04STV 4 Way Through Hole DIP Switch SPST APEM
by APEM
SKU 486221
MPN: NDIR-04STV
Availability:
79 in stock
Original price
£0.85
-
Original price
£0.85
Original price
£0.85
£0.85
-
£0.85
Current price
£0.85

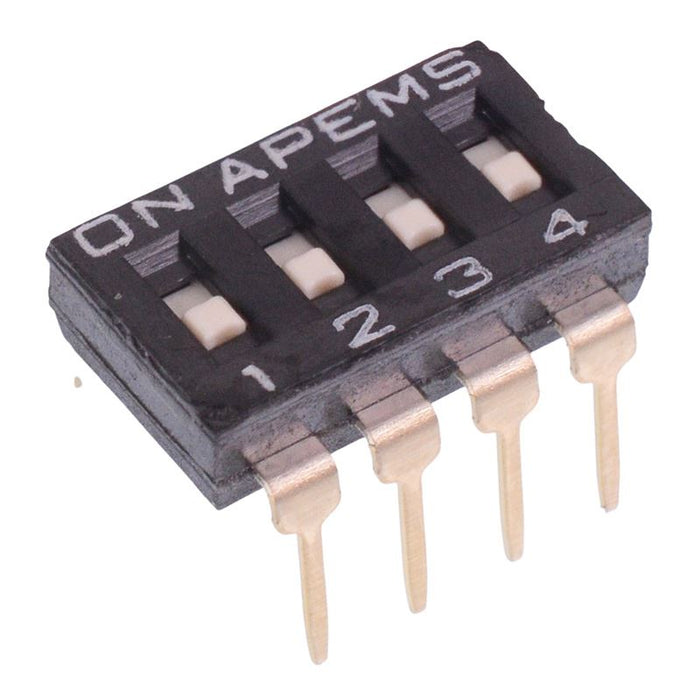

The NDIR-04STV is a 4 way standard DIP switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switches feature excellent reliability and self-cleaning contacts, making them suitable for a wide range of through hole applications.
4 ways SPST contacts 2.54mm x 7.62mm pitch Switching contact rating: 25mA 24VDC Non-switching contact rating: 100mA 50VDC Electrical life: 2000 cycles per switch Contact material: gold over nickel plated copper alloy
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold over nickel plated copper alloy |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Material | PBT |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 4 |
| Operating Force | 1000g Max |
| Operating Temperature | -20°C to 85°C |
| Pitch | 2.54mm |
| Product Series | NDI |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
