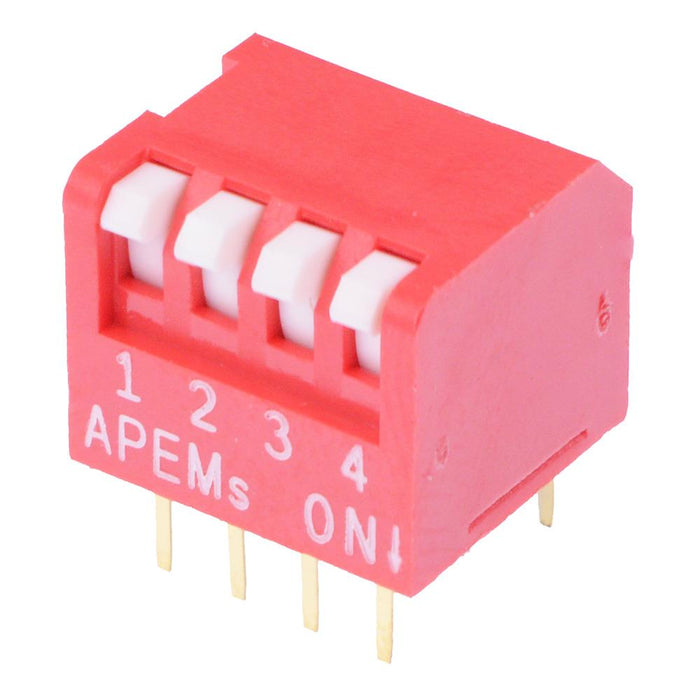

NDP04V APEM 4-Way Piano DIP Switch SPST
by APEM
SKU 487486
MPN: DP04V
Availability:
764 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
Inc VAT
£0.59
-
£0.59
Current price
£0.59
Inc VAT
The NDP04V is a 4 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
4 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 100mA 50VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Cycles |
| Material | PBT |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 4 |
| Operating temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Product series | NDP |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
