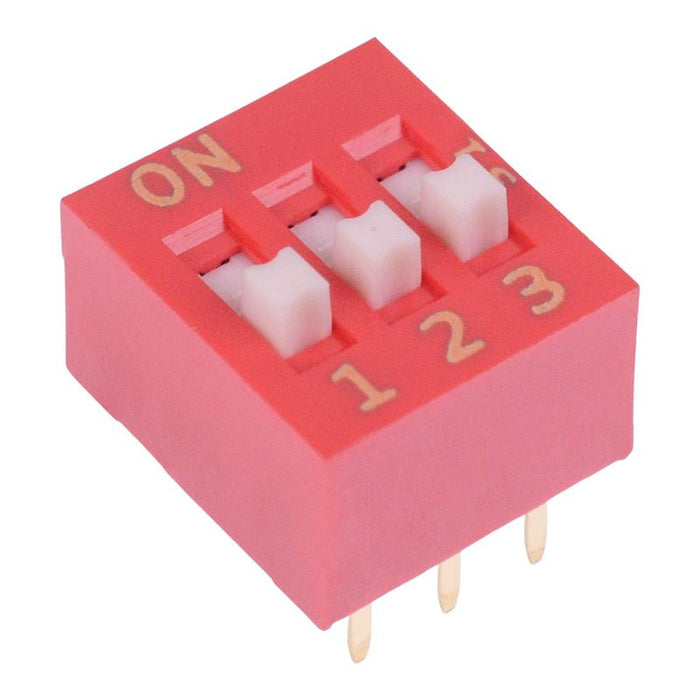

NDS-03-V 3 Way Raised Actuator DIP Switch SPST APEM
by APEM
SKU 486231
MPN: NDS-03-V
Availability:
Out of stock
Sold out
Original price
£0.63
-
Original price
£0.63
Original price
£0.63
£0.63
£0.63
-
£0.63
Current price
£0.63
The NDS-03-V is a 3 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.
3 way SPST contacts Raised actuator 2.54mm x 7.62mm pitch Switching contact rating: 25mA 24VDC Non-switching contact rating: 100mA 50VDC Electrical life: 2000 cycles per switch Contact material: gold plated
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Material | PBT |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 3 |
| Operating Force | 1000g Max |
| Operating Temperature | -40°C to 85°C |
| Pitch | 2.54mm |
| Product Series | NDS |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
