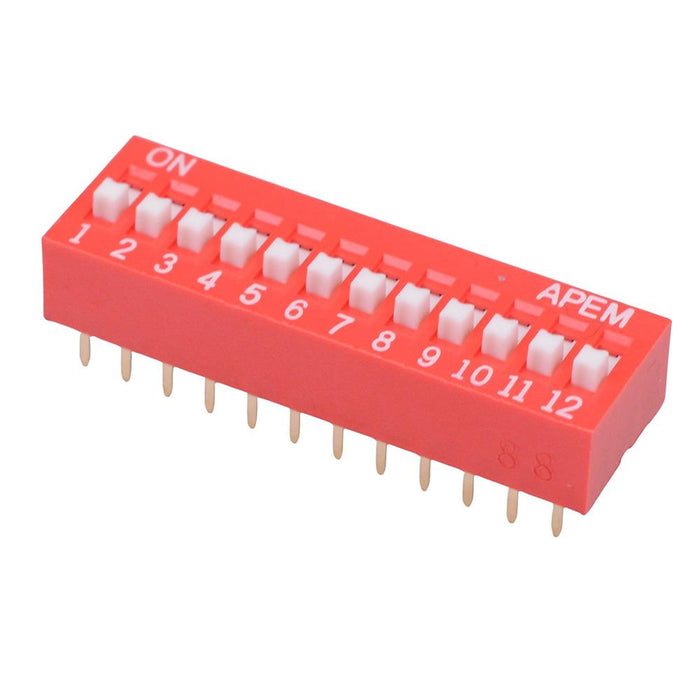

NDS-12T-V 12 Way Raised Actuator DIP Switch SPST APEM
by APEM
SKU 492526
MPN: NDS-12T-V
Availability:
756 in stock
Original price
£1.21
-
Original price
£1.21
Original price
£1.21
£1.21
-
£1.21
Current price
£1.21
The NDS-12T-V is a 12 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.
12 way SPST contacts Raised actuator 2.54mm x 7.62mm pitch Switching contact rating: 25mA 24VDC Non-switching contact rating: 100mA 50VDC Electrical life: 2000 cycles per switch Contact material: gold plated
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 12 |
| Operating Force | 9.8N Max |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
