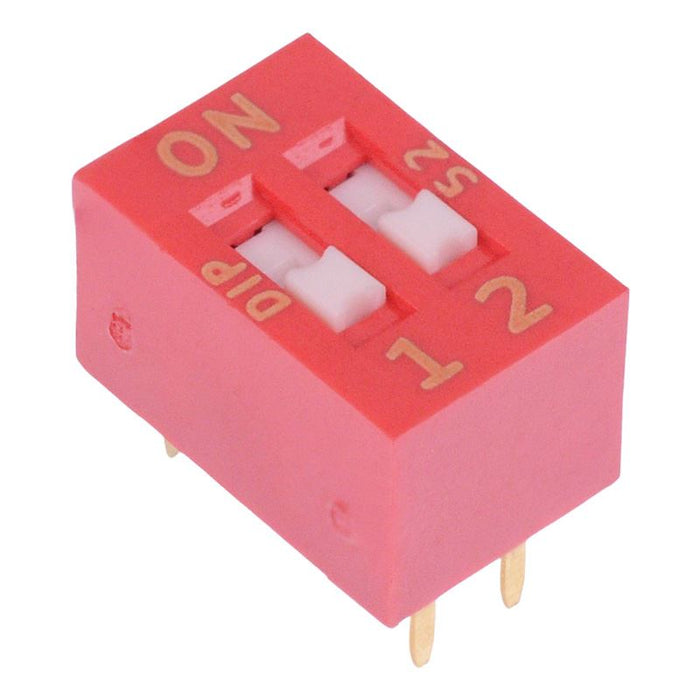

NDSR-02-V APEM 2 Way Recessed Actuator DIP Switch SPST
by APEM
SKU 486235
MPN: NDSR-02-V
Availability:
68 in stock
Original price
£0.69
-
Original price
£0.69
Original price
£0.69
Inc VAT
£0.69
-
£0.69
Current price
£0.69
Inc VAT
The NDSR-02-V is a 2 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features a recessed actuator and gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.
2 way SPST contacts Recessed actuator 2.54mm x 7.62mm pitch Switching contact rating: 25mA 24VDC Non-switching contact rating: 100mA 50VDC Electrical life: 2000 cycles per switch Contact material: gold plated
Specification
Actuation | Latching |
Back order lead time | 10 Days |
Colour | Red |
Contact configuration | SPST |
Contact material | Gold Plated |
Contact rating | 25mA 24VDC |
Current rating | 25mA |
Electrical life | 2,000 Cycles |
Material | PBT |
Mounting style | Through Hole |
Number of positions | 2 |
Number of ways | 2 |
Operating force | 1000g Max |
Operating temperature | -40°C to 85°C |
Pitch | 2.54mm |
Product series | NDS |
Switch operation | On-Off |
Terminal type | Solder |
Voltage rating | 24VDC |
