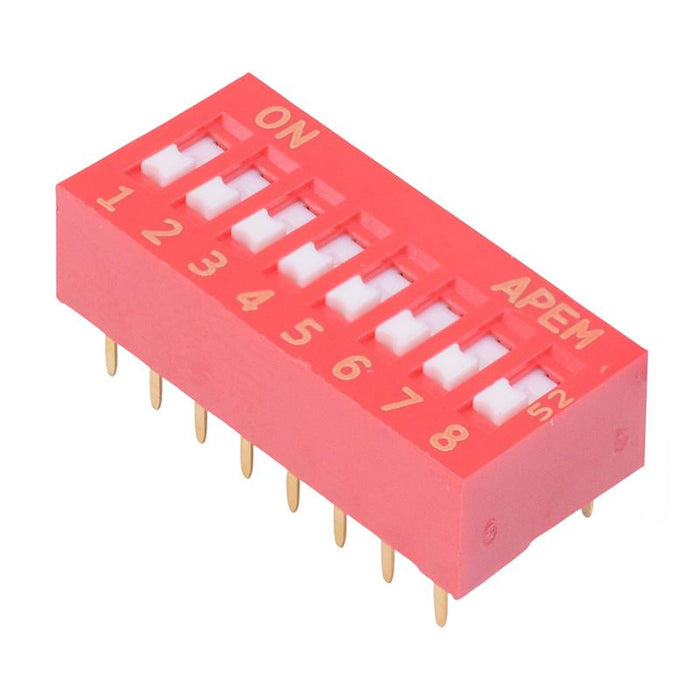

NDSR-08-V 8 Way Recessed Actuator DIP Switch SPST APEM

by APEM
SKU 486238

MPN: NDSR-08-V

Availability:
18 in stock
Original price £0.92 - Original price £0.92
Original price
£0.92
£0.92 - £0.92
Current price £0.92
The NDSR-08-V is a 8 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features a recessed actuator and gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.

  • 8 way
  • SPST contacts
  • Recessed actuator
  • 2.54mm x 7.62mm pitch
  • Switching contact rating: 25mA 24VDC
  • Non-switching contact rating: 100mA 50VDC
  • Electrical life: 2000 cycles per switch
  • Contact material: gold plated
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration SPST
    Contact Material Gold Plated
    Contact Rating 25mA 24VDC
    Current Rating 25mA
    Electrical Life 2,000 Cycles
    Material PBT
    Mounting Style Through Hole
    Number of Positions 2
    Number of Ways 8
    Operating Force 1000g Max
    Operating Temperature -40°C to 85°C
    Pitch 2.54mm
    Product Series NDS
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 24VDC
