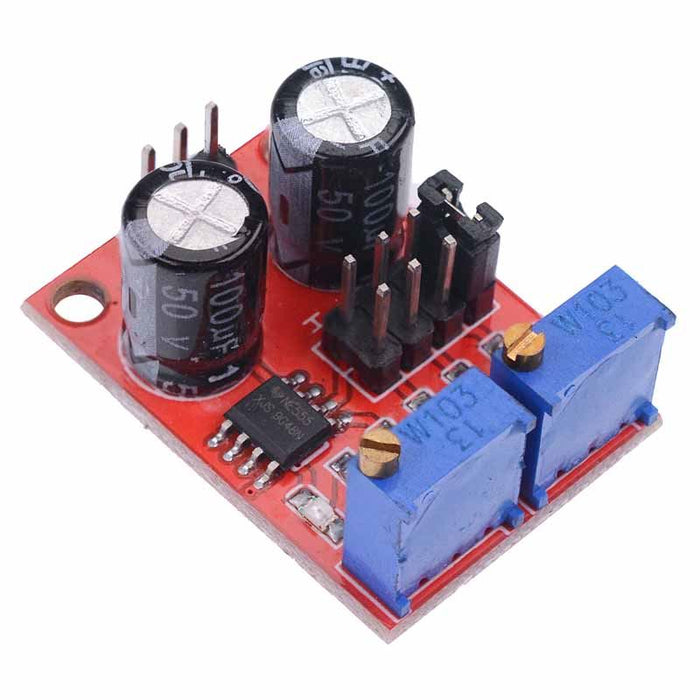

NE555 Adjustable Duty Cycle Pulse Frequency Square Wave Signal Generator Module

SKU 483162

MPN: 483162

85 in stock
Original price £1.08 - Original price £1.08
Original price
£1.08 Inc VAT
£1.08 - £1.08
Current price £1.08 Inc VAT
The NE555 adjustable duty cycle pulse frequency square wave signal generator module generates a square wave signal used for experiemental development. The module generates an adjustable pulse for MCU and to control associated circuitry.

  • NE555 chip
  • Input voltage: 5-15VDC
  • Output current: 15mA @ 5VDC, 35mA @ 12VDC
  • Input current: ≥100MA
  • Output amplitude:. 4.2V V-PP to 11.4V V-PP (different depending on the input voltage, the output amplitude will be different)
  • Maximum output current: ≥15MA 5V supply, ≥35MA 12V supply (V-PP is greater than 50%)
  • Output with LED indication (low level LED will be on, high level LED will off, low frequency, the LED flashes)
  • Output Frequency Range: Selectable
  • LF file: 1Hz to 50Hz
  • IF file: 50Hz to 1kHz
  • High-frequency file: 1KHz to 10kHz
  • HF file: 10kHz to 200kHz
  • Specification
