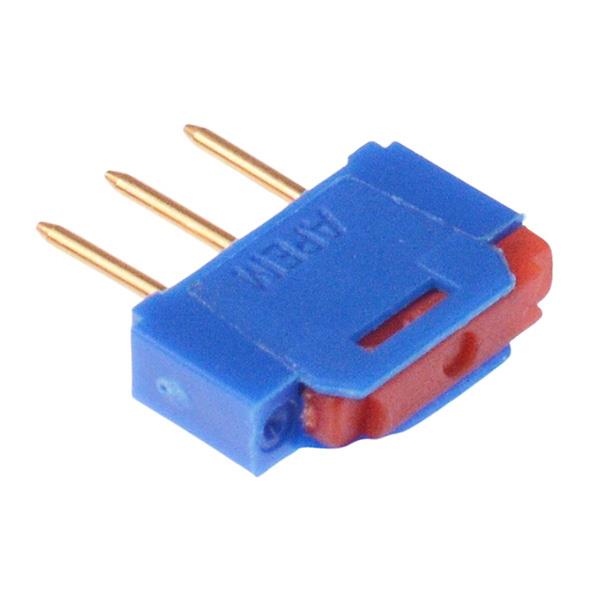

NK236 On-On Sub-Miniature Flush Actuator PCB Slide Switch 500mA 12V SPDT APEM
by APEM
SKU 486225
MPN: NK236
Availability:
94 in stock
Original price
£1.55
-
Original price
£1.55
Original price
£1.55
£1.55
-
£1.55
Current price
£1.55
The NK236 is a sub-miniature slide switch featuring a flush actuator and SPDT contacts, manufactured by APEM. The switch features 2.54mm pitch and is suitable for a wide range of PCB applications due to its small size.
Flush actuator SPDT contacts On-On operation Straight PCB terminals Rating: 0.5A 12V Contact material: gold over nickel Body dimensions: 10 x 6.5 x 2.6mm (length x height x thickness)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold over nickel |
| Contact Rating | 0.5A 12V |
| Current Rating | 0.5A |
| Electrical Life | 2000 Cycles |
| Material | PA66 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to 85°C |
| Pitch | 2.54mm |
| Product Series | NK |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 12V |
