NO 5mm NPN Long Inductive Proximity Sensor - PIN-T18L-001

by Comus
SKU 552490

MPN: PIN-T18L-001MC

Availability:
6 in stock
Original price £10.91 - Original price £10.91
Original price
£10.91
£10.91 - £10.91
Current price £10.91

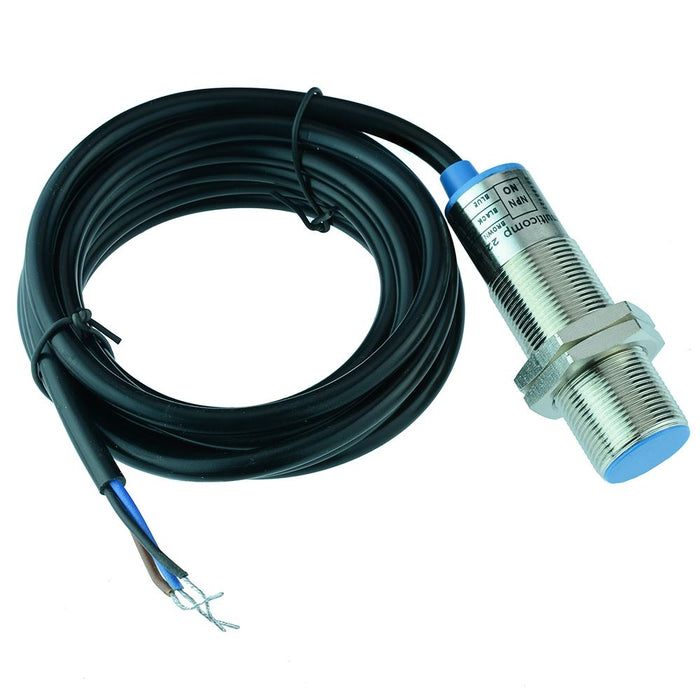

PIN-T18L-001 inductive proximity sensor featuring chrome plated brass cylindrical body with a long M18 thread. The sensor features normally open NPN output configuration, and is fully waterproof with an IP67 protection level. Applications include measuring, counting, RPM measuring, chemical, paper manufacturing.

  • NPN NO output configuration
  • Mounting distance: 5mm
  • Sensing distance: 0-4mm
  • Power supply: 10-30VDC
  • LED indicator provides status indication
  • Resistance against oil, water, acid, alkaline
  • Standard sensing object: ferrous metals
  • Over-current protection
  • Instructions included
  • Specification
    Back Order Lead Time 180 Days
    Output Type NPN NO
    Sensing Distance 0-4mm
