NO Reed Switch Aluminium Body SPST - CTC012
by Comus
SKU 552454
MPN: CTC012
Availability:
Out of stock
Sold out
Original price
£5.17
-
Original price
£5.17
Original price
£5.17
Inc VAT
£5.17
-
£5.17
Current price
£5.17
Inc VAT

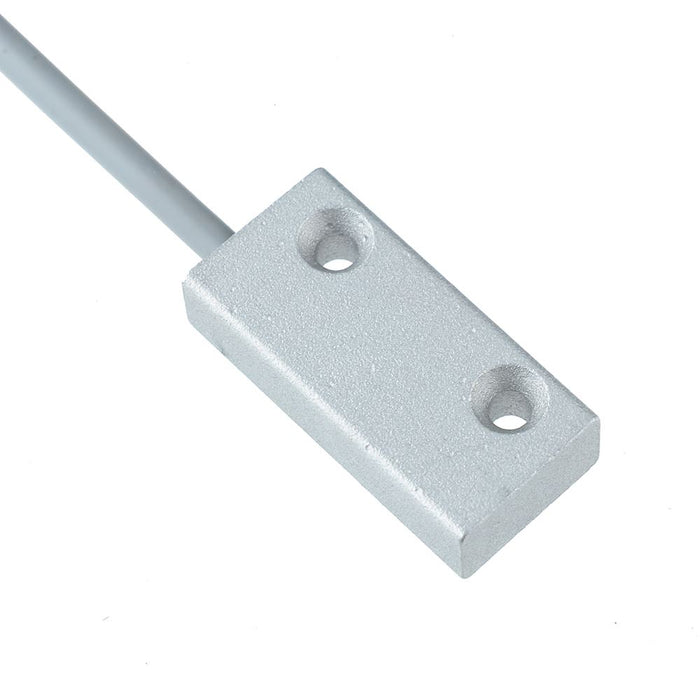

Rectangular based reed switch featuring an aluminium case and PVC covered wire. The switch features normally open contacts, suitable for flange mount applications including position and limit sensing, linear actuators, security system switch and door switches.
Normally open contacts Switching voltage: 200VAC Switching current: 0.5A Dimensions: 32 x 15 x 8mm 2 x 0.14mm² PVC covered cable
Specification
| Back order lead time | 180 Days |
| Contact configuration | SPST-NO |
| Material | Aluminium |
| Maximum switching capacity | 10VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 200VAC |
| Operating temperature | -20°C to +85°C |
