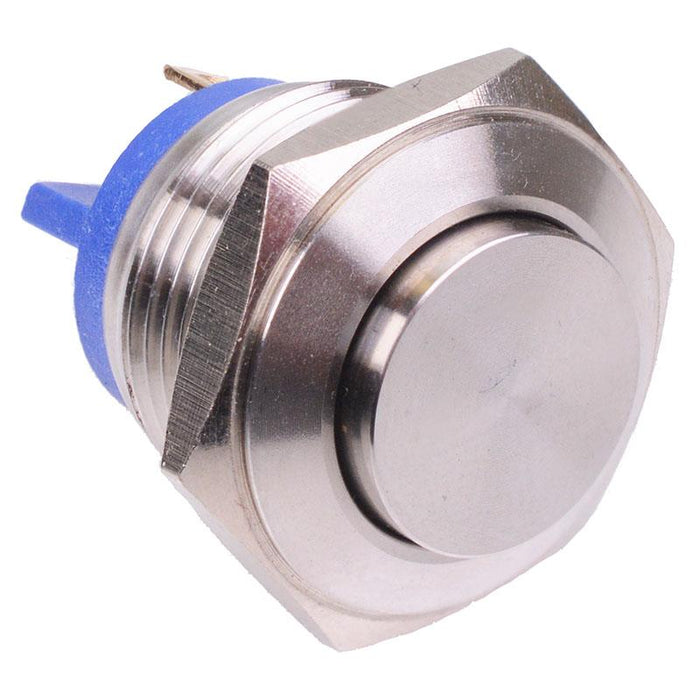

Off-(On) 16mm Raised Stainless Steel Vandal Resistant Push Button Switch 2A SPST
SKU 484351
MPN: 484351
Availability:
31 in stock
Original price
£4.48
-
Original price
£4.48
Original price
£4.48
Inc VAT
£4.48
-
£4.48
Current price
£4.48
Inc VAT
Vandal resistant push button switch manufactured from stainless steel featuring a raised button and suitable for a 16mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.
Momentary action SPST contacts 16mm panel cut-out Stainless steel body 2.8 x 0.5mm terminals 2A 48VDC rating 1,000,000 cycles mechanical life
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Contact configuration | SPST |
| Contact rating | 2A 48VDC |
| Current rating | 2A |
| Electrical life | 200,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 16mm |
| Panel thickness | 1-6mm |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 48VDC |
